Variables and Functions in Expressions

Expressions let a call flow react to live data as a call moves through it. You build them from two kinds of pieces: variables, which carry data about the current call, the components already in the flow, and the system; and functions, which test or transform that data. This page lists every variable and function available in Call Flow Designer.

Variables

A variable pulls in a value at run time and passes it along the flow. There are two kinds:

• Session variables hold information about the current call. They are available anywhere in the flow and do not depend on any component being present.
• Component variables hold values produced by a specific component, and only become available once that component has been added to the flow.

Session variables

Variable	Type	Description	Example
$Session.ani	String	Caller’s number, taken from the ANI (Automatic Number Identification) signal.	"15812340987"
$Session.callid	String	Unique identifier for the call.	"1751336277.2"
$Session.did	String	The DID (Direct Inward Dialing) number the caller dialed to reach this flow.	"5503301"
$Session.flowNum	String	The extension number of the call flow the caller reached.	"6900"
$Session.transferingNum	String	The number the call was forwarded from.	"1000"

Component variables

Note

Because the same component can appear more than once in a flow, Cloud Voice adds an index to each instance in the order you place it (Menu 1, Menu 2, and so on). A component variable must include that index so the expression reads from the right instance. The tables below use {index} as a placeholder.

Several playback components expose a ttsResult variable that reports how text-to-speech conversion went. In every case the value is one of two constants:

• <Component>TTSResult.Success, the text was converted to speech and played to the caller.
• <Component>TTSResult.Timeout, the text was not converted within the timeout window, so Cloud Voice skipped the prompt and sent the caller straight to the next component.

Prompt

Variable	Type	Description	Example value
$Prompt{index}.ttsResult	String	Text-to-speech result.	PromptTTSResult.Success

Menu

Variable	Type	Description	Example value
$Menu{index}.result	String	Outcome of the Menu component. MenuResult.Timeout, no digit before the timeout; routed to the timeout destination. MenuResult.ValidOption, valid key; routed to the matching destination. MenuResult.InvalidOption, invalid key; routed to the no-match destination.	MenuResult.InvalidOption
$Menu{index}.ttsResult	String	Text-to-speech result.	MenuTTSResult.Success
$Menu{index}.userInput	String	The DTMF (Dual-Tone Multi-Frequency, the touch-tone a keypad sends) digit the caller pressed, excluding the end key set under Call Flow Designer > Options > End Key.	"2"

User Input

Variable	Type	Description	Example value
$UserInput{index}.result	String	Outcome of the User Input component. UserInputResult.Timeout, no digit before the timeout; routed to the timeout destination. UserInputResult.ValidOption, valid key; routed to the matching destination.	UserInputResult.Timeout
$UserInput{index}.ttsResult	String	Text-to-speech result.	UserInputTTSResult.Success
$UserInput{index}.userInput	String	The DTMF digit the caller pressed, excluding the end key (# or *).	"2"

Record

Variable	Type	Description	Example value
$Record{index}.ttsResult	String	Text-to-speech result.	RecordTTSResult.Timeout

Dial by Number

Variable	Type	Description	Example value
$DialByNumber{index}.ttsResult	String	Text-to-speech result.	DialByNumberTTSResult.Success

Transfer

Variable	Type	Description	Example value
$Transfer{index}.ttsResult	String	Text-to-speech result.	TransferTTSResult.Success

Get Extension Presence Status

Variable	Type	Description	Example value
$GetExtensionStatus{index}.currentProfileName	String	Name of the extension’s current presence status.	"Available"
$GetExtensionStatus{index}.currentProfile	String	Name plus any extra detail of the extension’s current presence status.	"Available,work"
$GetExtensionStatus{index}.isUnavailable	Boolean	Whether the extension is unregistered.	False
$GetExtensionStatus{index}.isInCall	Boolean	Whether the extension is on a call. True, at least one endpoint registered to the extension is on a call. False, none of the registered endpoints are on a call.	True
$GetExtensionStatus{index}.isInRing	Boolean	Whether the extension is ringing. True, at least one endpoint registered to the extension is ringing. False, none of the registered endpoints are ringing.	False

Note

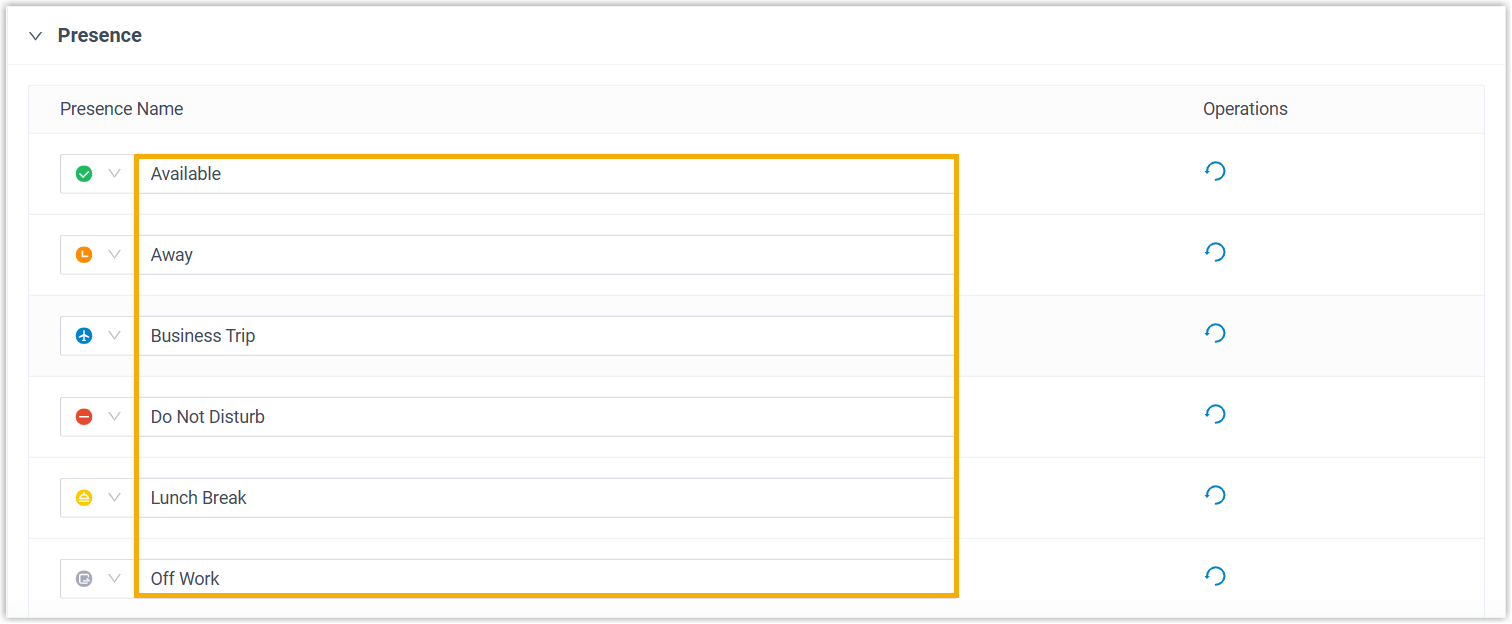

When you compare a presence status in a function, make sure the constant you test against matches one of the values defined under PBX Settings > Preferences > Presence.

Get Queue Agent

Variable	Type	Description	Example value
$GetQueueAgent{index}.agentList	Object	Agents in a given queue that have a given status, returned as each agent’s extension number and current status.	"1001,Log Out;1003,Log Out;1004,Log Out"
$GetQueueAgent{index}.agentNumberList	Object	Agents in a given queue that have a given status, returned as each agent’s extension number only.	"1001,1003,1004"

Get Queue Info

Variable	Type	Description	Example value
$GetQueueInfo{index}.availableAgents	Integer	Number of agents currently available to take calls.	5
$GetQueueInfo{index}.unavailableAgents	Integer	Number of agents currently unavailable to take calls.	1
$GetQueueInfo{index}.callsActive	Integer	Number of calls agents are currently handling.	2
$GetQueueInfo{index}.callsWaiting	Integer	Number of calls currently waiting in the queue.	10

Get Agent Status

Variable	Type	Description	Example value
$GetAgentStatus{index}.currentProfile	String	Name plus any extra detail of the agent’s current status.	"Log Out"
$GetAgentStatus{index}.isInCall	Boolean	Whether the agent is on a call. True, the agent is on a call. False, the agent is not on a call.	True
$GetAgentStatus{index}.isInRing	Boolean	Whether the agent’s extension is ringing. True, the extension is ringing. False, the extension is not ringing.	True

Note

When you compare an agent status in a function, the constant you test against must be one of the supported values:

• Static agents: "Pause{pause_reason}", "Unpause".
• Dynamic agents: "Log In", "Log Out", "Pause{pause_reason}".

Get System Info

Variable	Type	Description	Example value
$GetSystemInfo{index}.deviceName	String	Device name.	"PBX"
$GetSystemInfo{index}.modelName	String	Product model.	"Cloud Voice"
$GetSystemInfo{index}.sn	String	Serial number.	"3631A2124123"
$GetSystemInfo{index}.firmwareVersion	String	Firmware version.	"84.22.0.17-beta1"
$GetSystemInfo{index}.systemTime	String	Current system time.	"2026/01/30 09:46:44"
$GetSystemInfo{index}.systemUptime	Integer	System uptime, in seconds.	88606

Get System Capacity

Variable	Type	Description	Example value
$GetSystemCapacity{index}.extensionCapacity	Integer	Maximum number of extensions supported.	50
$GetSystemCapacity{index}.extensionUsed	Integer	Number of extensions in use.	33
$GetSystemCapacity{index}.ccCapacity	Integer	Maximum number of concurrent calls supported.	25
$GetSystemCapacity{index}.ccUsed	Integer	Number of concurrent calls in use.	1

Get Extension Info

Variable	Type	Description	Example value
$GetExtensionInfo{index}.number	String	Extension number.	"1001"
$GetExtensionInfo{index}.name	String	Extension name.	"Phillip Huff"
$GetExtensionInfo{index}.email	String	Extension’s email address.	"phillip@sample.com"
$GetExtensionInfo{index}.mobileNumber	String	Extension’s mobile number.	"15880123456"

Get Company Contact Info

Variable	Type	Description	Example value
$GetCompanyContactInfo{index}.contactName	String	Contact name.	"Leo Poll"
$GetCompanyContactInfo{index}.company	String	Company name.	"Acme"
$GetCompanyContactInfo{index}.email	String	Email address.	"leo@acme.com"
$GetCompanyContactInfo{index}.phonebookList	String	Phonebook(s) the contact belongs to.	"All"
$GetCompanyContactInfo{index}.remark	String	Note about the contact.	"remark"
$GetCompanyContactInfo{index}.business	String	Business number.	"01082345678"
$GetCompanyContactInfo{index}.business2	String	Second business number.	"02160123456"
$GetCompanyContactInfo{index}.mobile	String	Mobile number.	"13800001234"
$GetCompanyContactInfo{index}.mobile2	String	Second mobile number.	"15900005678"
$GetCompanyContactInfo{index}.home	String	Home number.	"01087654321"
$GetCompanyContactInfo{index}.home2	String	Second home number.	"075523456789"
$GetCompanyContactInfo{index}.businessFax	String	Business fax number.	"01082345679"
$GetCompanyContactInfo{index}.homeFax	String	Home fax number.	"02160123457"
$GetCompanyContactInfo{index}.other	String	Other phone number.	"4008880000"

Database Access

Variable	Type	Description	Example value
$DatabaseAccess{index}.queryResult	Object	The table returned by a SELECT query.	"demo%40example.com"
$DatabaseAccess{index}.nonQueryResult	Integer	Number of rows affected by a non-query statement.	99
$DatabaseAccess{index}.scalarResult	String	The single value returned by a scalar query.	"10"

Tip

To read data out of a queryResult table, pair it with FX_GET_TABLE_ROW_COUNT(table) to count the rows and FX_GET_TABLE_CELL_VALUE(table, row, column) to pull a specific cell.

HTTP Request

Variable	Type	Description	Example value
$HttpRequest{index}.responseContent	String	Body of the HTTP response.	{"authenticated": true, "user": "10000"}
$HttpRequest{index}.responseStatusCode	String	HTTP status code of the response.	"200"

Note

When you evaluate an HTTP status code in a function, test against the numeric code alone (for example, 200), with no accompanying text.

Functions

Functions evaluate conditions and process data so you can steer a call flow dynamically. Each entry below lists its syntax, the input and output types, and an example. They are grouped by the type of value they return.

Boolean functions

FX_AND: Logical AND across two or more conditions; returns True only when all of them are met at once.

• Syntax: FX_AND(condition1, condition2, …)
• Input: Boolean. Output: Boolean.
• Example: FX_AND(FX_EQUAL($UserInput1.userInput, "1"), FX_EQUAL($Session.ani, "1001")) returns True only when the caller pressed 1 and is calling from 1001.

FX_OR: Logical OR across two or more conditions; returns True when any of them is met.

• Syntax: FX_OR(condition1, condition2, …)
• Input: Boolean. Output: Boolean.
• Example: FX_OR(FX_EQUAL($Session.ani, "1001"), FX_EQUAL($GetAgentStatus1.isInCall, False)) returns True if the caller’s number is 1001 or the agent is not on a call.

FX_NOT: Inverts the Boolean result of a single condition.

• Syntax: FX_NOT(condition)
• Input: Boolean. Output: Boolean.
• Example: FX_NOT($GetExtensionStatus1.isInCall) returns True when the extension is not on a call.

FX_EQUAL: Tests whether two values are equal in both value and data type.

• Syntax: FX_EQUAL(value1, value2)
• Input: any. Output: Boolean.
• Example: FX_EQUAL($Session.ani, "1001") returns True if the caller’s number is a string with the exact value "1001".

FX_NOT_EQUAL: Tests whether two values are not equal.

• Syntax: FX_NOT_EQUAL(value1, value2)
• Input: any. Output: Boolean.
• Example: FX_NOT_EQUAL($GetAgentStatus1.isInRing, True) returns True if the agent is not ringing.

FX_CONTAINS: Tests whether the first string contains the second.

• Syntax: FX_CONTAINS(value1, value2)
• Input: String. Output: Boolean.
• Example: FX_CONTAINS($GetExtensionStatus1.currentProfile, "Available") returns True if the extension’s presence status contains Available.

FX_GREATER_THAN: Tests whether the first value is greater than the second.

• Syntax: FX_GREATER_THAN(value1, value2)
• Input: Integer. Output: Boolean.
• Example: FX_GREATER_THAN($GetQueueInfo1.callsWaiting, 5) returns True if more than 5 calls are waiting in the queue.

FX_GREATER_THAN_OR_EQUAL: Tests whether the first value is greater than or equal to the second.

• Syntax: FX_GREATER_THAN_OR_EQUAL(value1, value2)
• Input: Integer. Output: Boolean.
• Example: FX_GREATER_THAN_OR_EQUAL($GetQueueInfo1.callsWaiting, 5) returns True if 5 or more calls are waiting.

FX_LESS_THAN: Tests whether the first value is less than the second.

• Syntax: FX_LESS_THAN(value1, value2)
• Input: Integer. Output: Boolean.
• Example: FX_LESS_THAN($GetQueueInfo1.callsWaiting, 5) returns True if fewer than 5 calls are waiting.

FX_LESS_THAN_OR_EQUAL: Tests whether the first value is less than or equal to the second.

• Syntax: FX_LESS_THAN_OR_EQUAL(value1, value2)
• Input: Integer. Output: Boolean.
• Example: FX_LESS_THAN_OR_EQUAL($GetQueueInfo1.callsWaiting, 5) returns True if 5 or fewer calls are waiting.

FX_TO_BOOLEAN: Converts a value to a Boolean.

• Syntax: FX_TO_BOOLEAN(value)
• Input: any. Output: Boolean.
• Example: FX_TO_BOOLEAN($GetExtensionStatus1.currentProfile) converts the value from a Get Extension Presence Status component to a Boolean, for instance, "Available" returns True.

String functions

FX_CONCATENATE: Joins every string argument into one string.

• Syntax: FX_CONCATENATE(string1, string2, …)
• Input: String. Output: String.
• Example: FX_CONCATENATE("Caller", $Session.ani, "called", $Session.flowNum) combines the caller’s number and flow number into one string, such as "Caller1001called6900".

FX_TRIM: Removes leading and trailing whitespace (spaces, newlines, and so on) from a value.

• Syntax: FX_TRIM(value)
• Input: String. Output: String.
• Example: FX_TRIM(" Hello ") returns "Hello".

FX_LEFT: Returns a set number of characters from the start of the text.

• Syntax: FX_LEFT(text, count)
• Input: text (String), count (Integer). Output: String.
• Example: FX_LEFT("13800138000", 3) returns "138".

FX_MID: Returns a substring beginning at a given position for a given length.

• Syntax: FX_MID(text, start_position, length)
• Input: text (String), start_position (Integer), length (Integer). Output: String.
• Example: FX_MID("13800138000", 4, 4) returns "0013", four characters starting at the fourth character.

FX_RIGHT: Returns a set number of characters from the end of the text.

• Syntax: FX_RIGHT(text, count)
• Input: text (String), count (Integer). Output: String.
• Example: FX_RIGHT("13800138000", 4) returns "8000".

FX_UPPER: Converts all characters in the text to uppercase.

• Syntax: FX_UPPER(text)
• Input: String. Output: String.
• Example: FX_UPPER("Cloud Voice") returns "CLOUD VOICE".

FX_LOWER: Converts all characters in the text to lowercase.

• Syntax: FX_LOWER(text)
• Input: String. Output: String.
• Example: FX_LOWER("Cloud Voice") returns "cloud voice".

FX_REPLACE: Replaces every occurrence of a substring with another substring.

• Syntax: FX_REPLACE(text, target, replacement)
• Input: text (String), target (String), replacement (String). Output: String.
• Example: FX_REPLACE("+8613800138000", "+86", "") strips the +86 country code and returns "13800138000".

FX_REPLACE_REG_EXP: Replaces substrings matching a regular expression with a replacement string.

• Syntax: FX_REPLACE_REG_EXP(text, expression, replacement)
• Input: text (String), expression (String), replacement (String). Output: String.
• Example: FX_REPLACE_REG_EXP("Call123", "[0-9]", "X") matches every digit and returns "CallXXX".

FX_JSON_GET_STRING: Reads a string value from a JSON object by key.

• Syntax: FX_JSON_GET_STRING(JSONObject, key)
• Input: JSONObject (String), key (String). Output: String.
• Example: FX_JSON_GET_STRING($HttpRequest1.responseContent, "status") returns the value of the status key in the JSON returned by the HTTP Request 1 component.

FX_TO_STRING: Converts a value to a string.

• Syntax: FX_TO_STRING(value)
• Input: any. Output: String.
• Example: FX_TO_STRING(10086) returns "10086".

Date and time functions

FX_NOW: Returns the current date and time as a DateTime value.

• Syntax: FX_NOW()
• Input: none. Output: DateTime.
• Example: FX_NOW() returns the current system date and time, such as "2025-07-01 17:29:08".

Number functions

FX_LEN: Returns the number of characters in the text.

• Syntax: FX_LEN(text)
• Input: String. Output: Integer.
• Example: FX_LEN("13800138000") returns 11.

Caution

Each arithmetic function comes in two versions. The standard version (for example, FX_SUM) works on 32-bit integers, which hold values from roughly -2.1 billion to 2.1 billion. The _LONG version (for example, FX_SUM_LONG) works on 64-bit integers for larger numbers. If any input or the result would fall outside the 32-bit range, use the _LONG version, otherwise the result can be inaccurate.

FX_SUM: Adds two or more 32-bit integers.

• Syntax: FX_SUM(value1, value2, …)
• Input: Integer. Output: Integer.
• Example: FX_SUM(100, 200, 300) returns 600.

FX_SUM_LONG: Adds two or more 64-bit integers.

• Syntax: FX_SUM_LONG(value1, value2, …)
• Input: Integer. Output: Integer.
• Example: FX_SUM_LONG(1000000000, 2500000000) returns 3500000000.

FX_NEGATIVE: Returns the negative of a 32-bit integer.

• Syntax: FX_NEGATIVE(value)
• Input: Integer. Output: Integer.
• Example: FX_NEGATIVE(100) returns -100.

FX_NEGATIVE_LONG: Returns the negative of a 64-bit integer.

• Syntax: FX_NEGATIVE_LONG(value)
• Input: Integer. Output: Integer.
• Example: FX_NEGATIVE_LONG(1000000000) returns -1000000000.

FX_MULTIPLY: Multiplies two or more 32-bit integers.

• Syntax: FX_MULTIPLY(value1, value2, …)
• Input: Integer. Output: Integer.
• Example: FX_MULTIPLY(10, 20, 3) returns 600.

FX_MULTIPLY_LONG: Multiplies two or more 64-bit integers.

• Syntax: FX_MULTIPLY_LONG(value1, value2, …)
• Input: Integer. Output: Integer.
• Example: FX_MULTIPLY_LONG(100000, 20000) returns 2000000000.

FX_DIVIDE: Divides the first 32-bit integer by the second.

• Syntax: FX_DIVIDE(value1, value2)
• Input: Integer. Output: Integer.
• Example: FX_DIVIDE(100, 20) returns 5.

FX_DIVIDE_LONG: Divides the first 64-bit integer by the second.

• Syntax: FX_DIVIDE_LONG(value1, value2)
• Input: Integer. Output: Integer.
• Example: FX_DIVIDE_LONG(10000000000, 2000000000) returns 5.

FX_ABS: Returns the absolute (non-negative) value of a 32-bit integer.

• Syntax: FX_ABS(value)
• Input: Integer. Output: Integer.
• Example: FX_ABS(-100) returns 100.

FX_ABS_LONG: Returns the absolute (non-negative) value of a 64-bit integer.

• Syntax: FX_ABS_LONG(value)
• Input: Integer. Output: Integer.
• Example: FX_ABS_LONG(-10000000000) returns 10000000000.

FX_GET_TABLE_ROW_COUNT: Returns the number of rows in a table.

• Syntax: FX_GET_TABLE_ROW_COUNT(table)
• Input: any. Output: Integer.
• Example: FX_GET_TABLE_ROW_COUNT($DatabaseAccess1.queryResult) returns the row count of the result from the Database Access 1 component.

FX_GET_LIST_ITEM_COUNT: Returns the number of items in a list.

• Syntax: FX_GET_LIST_ITEM_COUNT(list)
• Input: any. Output: Integer.
• Example: FX_GET_LIST_ITEM_COUNT($DatabaseAccess1.queryResult) returns the item count of the result from the Database Access 1 component.

FX_JSON_GET_INTEGER: Reads an integer value from a JSON object by key.

• Syntax: FX_JSON_GET_INTEGER(JSONObject, key)
• Input: JSONObject (String), key (String). Output: Integer.
• Example: FX_JSON_GET_INTEGER($HttpRequest1.responseContent, "httpStatus") returns the value of the httpStatus key in the JSON returned by the HTTP Request 1 component.

FX_TO_INTEGER: Converts a value to a 32-bit integer.

• Syntax: FX_TO_INTEGER(value)
• Input: String. Output: Integer.
• Example: FX_TO_INTEGER("12345") returns the integer 12345.

FX_TO_LONG: Converts a value to a 64-bit integer.

• Syntax: FX_TO_LONG(value)
• Input: String. Output: Integer.
• Example: FX_TO_LONG("1234567890123") returns the integer 1234567890123.

Object functions

FX_GET_TABLE_CELL_VALUE: Returns the value in a table cell at a given row and column.

• Syntax: FX_GET_TABLE_CELL_VALUE(table, row, column)
• Input: table (any), row (Integer), column (Integer). Output: Object.
• Example: FX_GET_TABLE_CELL_VALUE($DatabaseAccess1.queryResult, 0, 1) returns the value in the first row and second column of the result from the Database Access 1 component.

FX_GET_LIST_ITEM: Returns the item at a given index in a list.

• Syntax: FX_GET_LIST_ITEM(list, index)
• Input: list (any), index (Integer). Output: Object.
• Example: FX_GET_LIST_ITEM($DatabaseAccess1.queryResult, 2) returns the third item in the result from the Database Access 1 component.

FX_GET_JSON_ARRAY_ITEM: Returns a field from the object at a given index within a JSON array.

• Syntax: FX_GET_JSON_ARRAY_ITEM(jsonData, arrayKey, index, fieldName)
• Input: jsonData (String), arrayKey (String), index (Integer), fieldName (String). Output: Object.
• Example: FX_GET_JSON_ARRAY_ITEM($HttpRequest1.responseContent, "data", 0, "phoneNumber") returns the phoneNumber value from the first object in the data array.

FX_JSON_GET_OBJECT: Returns a nested JSON object from a parent object by key.

• Syntax: FX_JSON_GET_OBJECT(JSONObject, key)
• Input: JSONObject (String), key (String). Output: Object.
• Example: FX_JSON_GET_OBJECT($HttpRequest1.responseContent, "data") returns the JSON object under the data key in the JSON returned by the HTTP Request 1 component.
