Get Extension Info

Get Extension Info is one of the Internal Data Ops operations. It searches for an extension and returns that user’s details, extension number, name, email address, and mobile number, then stores each value in a variable. Components further along the flow can read those variables or test them in a condition.

What it does

Point the component at an extension and it hands back four pieces of information about that user:

• The extension number.
• The extension name.
• The email address on the extension.
• The mobile number on the extension.

You can name the extension directly through the filters, or supply an expression so the target is chosen while the call runs. The lookup writes its results into variables you can pass to a following component or evaluate in a Condition.

Note

When a search matches more than one extension, the component returns the details of the most recently created one.

Configure the component

1. Drag the Internal Data Ops component onto the canvas, then click it to open its settings.

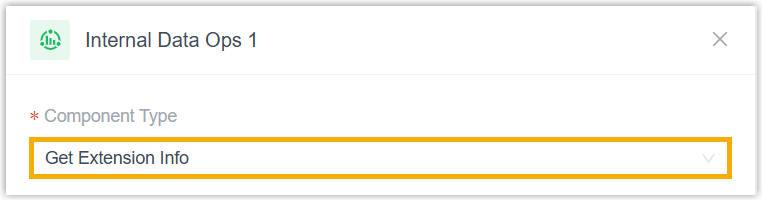

2. In the Component Type drop-down list, choose Get Extension Info.

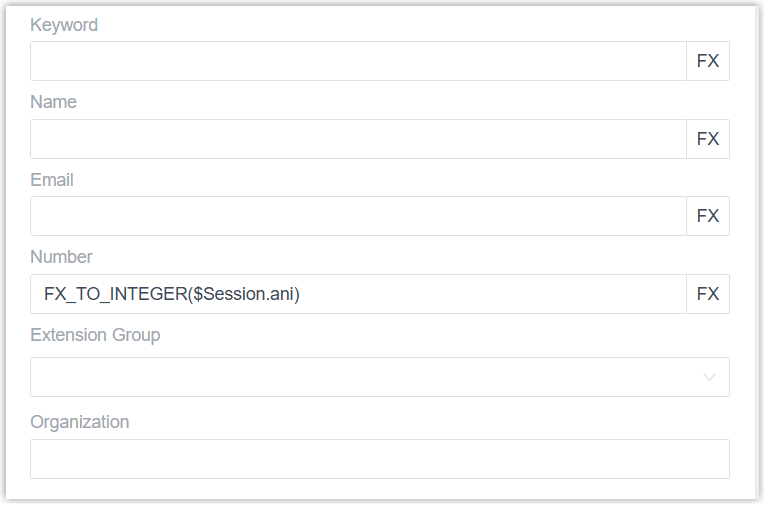

3. Narrow the search to the extension you want using any of the filters below.



   Filter	Description
   Keyword	Search by first name, last name, email address, or extension number. Alternatively, click the fx icon and enter an expression to resolve the extension at runtime.
   Name	Enter the extension’s first or last name, or click the fx icon to supply an expression.
   Email	Enter the extension’s email address, or click the fx icon to supply an expression.
   Number	Enter the extension number, or click the fx icon to supply an expression.
   Extension Group	Choose one or more extension groups to limit the search to those groups. Leave it empty to search every extension group.
   Organization	Choose one or more departments to limit the search to those departments. Available only when Organization Management is turned on (PBX Settings > Preferences > Organization Management). When set, the search covers the selected departments and their sub-departments; leave it empty to search all departments.

4. Click Confirm in the bottom-right corner.

Tip

When a lookup could match more than one person, filter on a unique value such as the exact extension number. The component then returns a single, predictable result instead of falling back to the most recently created match.

Variables

Adding a Get Extension Info component writes the extension’s details into the variables below. Read them from any expression-aware component, Condition, for instance, to act on what the lookup returned.

Note

A call flow can hold more than one Get Extension Info component, so each is numbered in the order you add it (Get Extension Info 1, Get Extension Info 2, and so on). Include the matching index in the variable name so you read from the right component.

Variable	Type	Description	Example
$GetExtensionInfo{index}.number	String	Extension number.	"1001"
$GetExtensionInfo{index}.name	String	Extension name.	"Phillip Huff"
$GetExtensionInfo{index}.email	String	The extension’s email address.	"phillip@sample.com"
$GetExtensionInfo{index}.mobileNumber	String	The extension’s mobile number.	"15880123456"

What it can connect to

A Get Extension Info component leads to exactly one downstream component. Any of the following can follow it:

Component	Purpose
Prompt	Play an audio file or a text-to-speech message to the caller.
Business Hours	Route the call to different destinations depending on the time of day.
Menu	Offer callers a set of options and route them by the DTMF key they press. DTMF (Dual-Tone Multi-Frequency) is the tone a phone sends when the caller presses a keypad digit.
User Input	Collect DTMF digits from the caller, usually paired with Condition to act on what was entered.
Language	Change the system prompt language for the rest of the flow.
Record	Start recording once the caller connects to another party, with optional notification prompts, or turn recording off for a call that would otherwise be recorded.
Dial by Number	Let callers dial a number directly to reach their destination.
Dial by Name	An end component that lets callers reach a user by typing the first three letters of their name.
Transfer	An end component that sends the caller to a chosen destination, with optional prompts announcing the transfer.
Hang Up Call	An end component that disconnects the call.
Condition	Route the call based on logical expressions.
Loop	Repeat a group of components a set number of times or until a condition is met.
Internal Data Ops	Read from and write to the Cloud Voice system’s own database. See Get Extension Presence Status, Set Extension Presence Status, Get Queue Agent, Get Queue Info, Get Agent Status, Set Agent Status, Get System Info, Get System Capacity, Get Extension Info, and Get Company Contact Info.
Email Sender	Send an email for real-time notifications, alerts, or user-specific information.
Database Access	Run a SQL (Structured Query Language) operation against an external database during the call flow.
HTTP Request	Send an HTTP request to an external server to exchange data with a third-party service.
