Manually Register a Flyingvoice IP Phone

When auto provisioning isn’t an option, you can register a Flyingvoice IP phone by hand: pull the extension’s SIP credentials from Cloud Voice, then type them into the phone’s web interface. The example below uses a Flyingvoice P20P running firmware V0.8.18.6, but the same steps work on any Flyingvoice model that supports SIP.

Supported devices

Any Flyingvoice IP phone that supports SIP (Session Initiation Protocol).

How it works

Manual registration has two parts:

1. Look up the extension’s registration details in Cloud Voice.
2. Enter those details on the Flyingvoice phone.

Step 1. Look up the registration details in Cloud Voice

Sign in to the Cloud Voice management portal and collect the values in the table below. You’ll need them all in Step 2.

Detail	Where to find it
Extension credentials	Open Extension and Trunk > Extension, click the edit icon for the extension, then go to User > Extension Information. Write down the Extension Number, Registration Name, and Registration Password.
Transport protocol	Open Extension and Trunk > Extension, click the edit icon for the extension, then go to Advanced > VoIP Settings > Transport. Note the protocol in use. This example uses UDP (User Datagram Protocol).
PBX domain name	The domain name of your Cloud Voice system. This example uses pbx.example.com.
SIP registration port	The SIP registration port is 5060 (the standard default port for SIP).

You’ll find the credentials on the Extension Information tab:

The transport protocol lives on the VoIP Settings tab, under Advanced:

Caution

Whatever protocol the extension uses, the matching listener has to be enabled on the PBX, or registration fails. UDP works out of the box; the others do not:

• TCP (Transmission Control Protocol): turn on the SIP TCP port at PBX Settings > SIP Settings > General > Basic.



• TLS (Transport Layer Security): enable TLS at PBX Settings > SIP Settings > TLS.



Step 2. Register the extension on the Flyingvoice phone

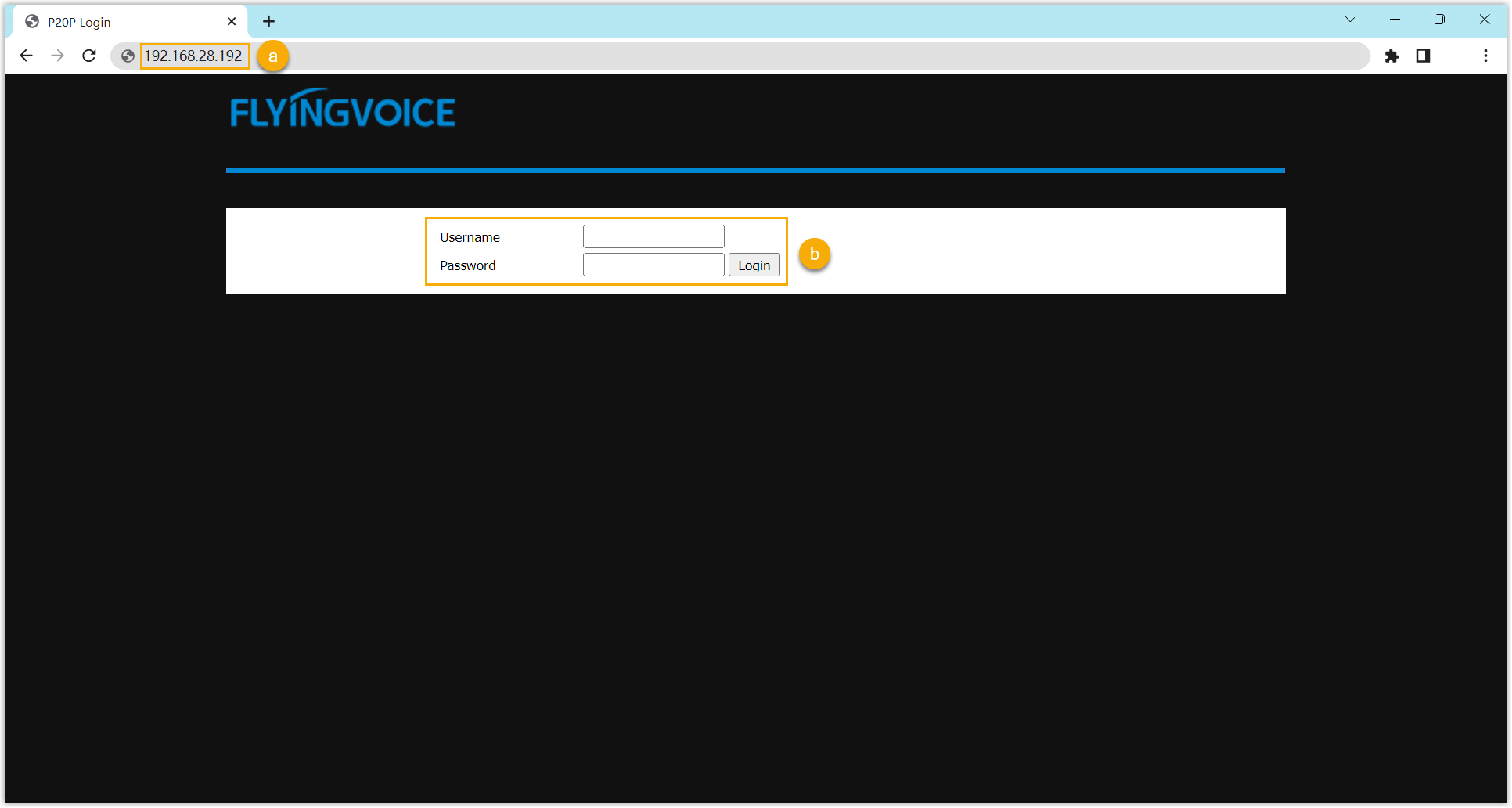

1. Log in to the phone’s web interface.

   a. Type the phone’s IP address into your browser’s address bar.

   b. Enter the username admin along with its password, then click Login. This example uses the factory default password admin.

   Caution

   The factory default password (admin) is publicly documented, so a phone left on it is exposed to anyone who can reach it on the network. Once the phone is registered, change it to a strong, unique password to reduce the risk of unauthorized access and toll fraud.

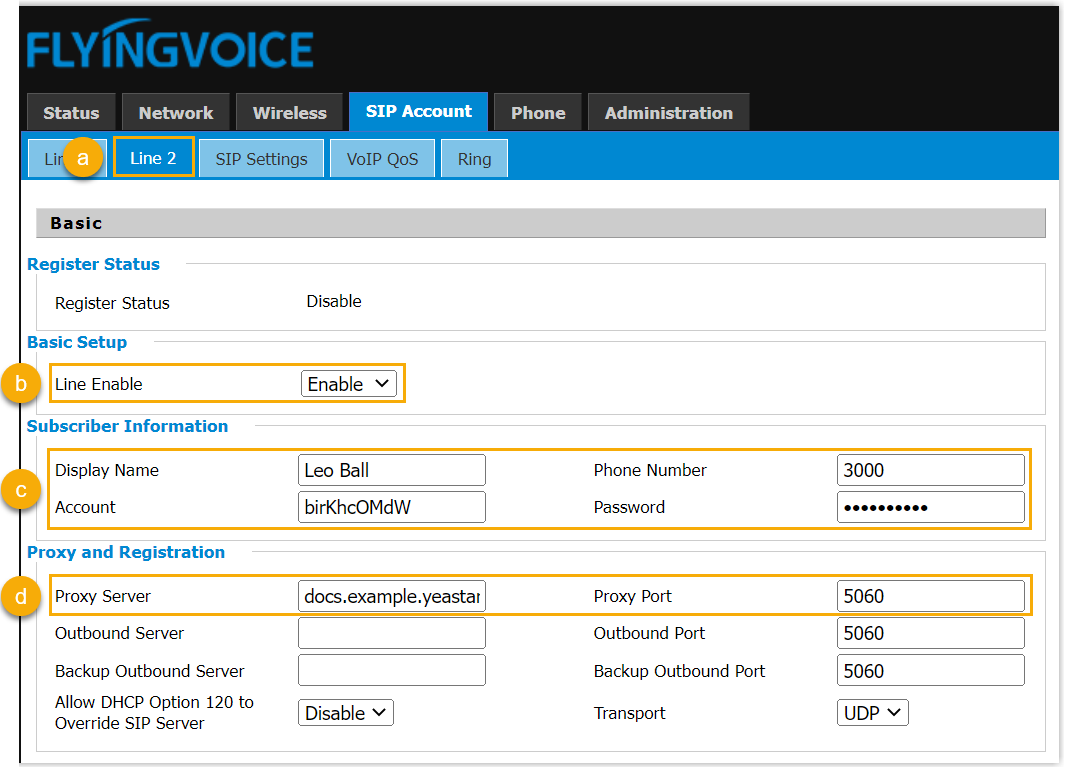

2. Open the SIP Account tab and fill in the registration settings.



   a. Pick an available line.

   b. Set Line Enable to Enable.

   c. Under Subscriber Information, enter the extension credentials:

   • Display Name: the name tied to the account; this appears on the phone’s screen.
   • Phone Number: the extension number.
   • Account: the extension’s registration name.
   • Password: the extension’s registration password.

   d. Under Proxy and Registration, enter the server details:

   • Proxy Server: your Cloud Voice domain name.
   • Proxy Port: the SIP registration port.

3. Scroll to the bottom of the page and click Save & Apply.

Result

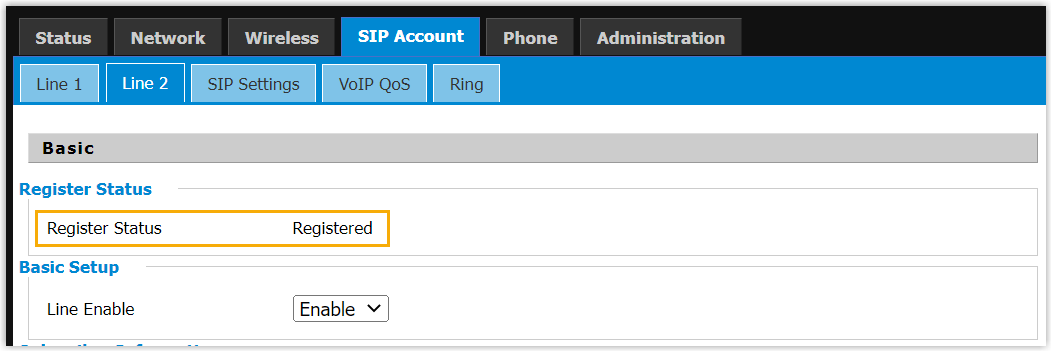

The extension registers with Cloud Voice. To confirm, check the Register status field on the phone.

Tip

If Register status does not turn to registered after a minute, work back through the details you entered: confirm that Account and Password match the Registration Name and Registration Password exactly, that Proxy Server and Proxy Port are correct, and that the listener for the extension’s transport protocol is enabled on Cloud Voice (see Step 1).
