Provision an Avaya IP Phone

Auto provisioning lets Cloud Voice deliver a phone’s configuration from the server, so you don’t have to key settings in on the handset. Avaya phones locate that configuration through DHCP (Dynamic Host Configuration Protocol) option 242 rather than the plug-and-play discovery used by most other vendors, so provisioning them takes two parts: adding the phone in Cloud Voice, then telling your DHCP server where the phone should fetch its files. This page uses an Avaya J139 (firmware 4.1.5.0.6) as the working example; the same steps apply to the other supported models.

Supported models and firmware

Confirm that both the phone and Cloud Voice meet the minimum firmware versions below before you start.

Model	Phone firmware	Cloud Voice version
J129	4.1.1.0.7 or later	84.16.0.70 or later
J139	4.1.1.0.7 or later	84.16.0.70 or later
J159	4.1.1.0.7 or later	84.16.0.70 or later
J169	4.1.1.0.7 or later	84.16.0.70 or later
J179	4.1.1.0.7 or later	84.16.0.70 or later
J189	4.1.1.0.7 or later	84.16.0.70 or later
9608	7.1.15.2.1 or later	84.16.0.70 or later
9611G	7.1.15.2.1 or later	84.16.0.70 or later
9641G	7.1.15.2.1 or later	84.16.0.70 or later

Before you start

• Have a DHCP server running on the same subnet as the phone so it can lease the phone an IP address.

  Note

  Only one DHCP server may run on the subnet. If a second one is active, the phone can’t reliably obtain an address.

• If the phone was used previously, factory-reset it first.

  Caution

  A factory reset erases the phone’s current settings and registration. Confirm you have the right handset and that it is not in service elsewhere before you reset it.

• Collect the phone’s details: vendor, model, and MAC (Media Access Control) address. The MAC address is the phone’s unique hardware identifier, usually printed on a label on the underside of the phone.

• Download the default auto provisioning template for your phone model. The templates live under Auto Provisioning > Resource Repository > Default Templates.

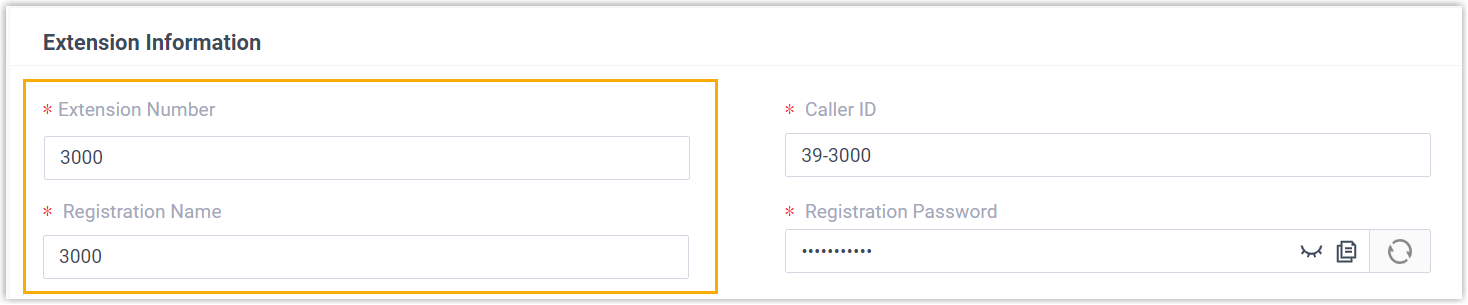

• On the extension you plan to assign, set the Registration Name to match the Extension Number. Edit the extension under Extension and Trunk > Extension, then open User > Extension Information.

  Caution

  Avaya phones require the Registration Name and Extension Number to be identical. If they differ, the extension won’t register.



Step 1: Add the Avaya phone in Cloud Voice

Adding the phone generates a configuration file keyed to its MAC address.

1. Sign in to the Cloud Voice web portal and go to Auto Provisioning > Phones.

2. Click Add > Add.

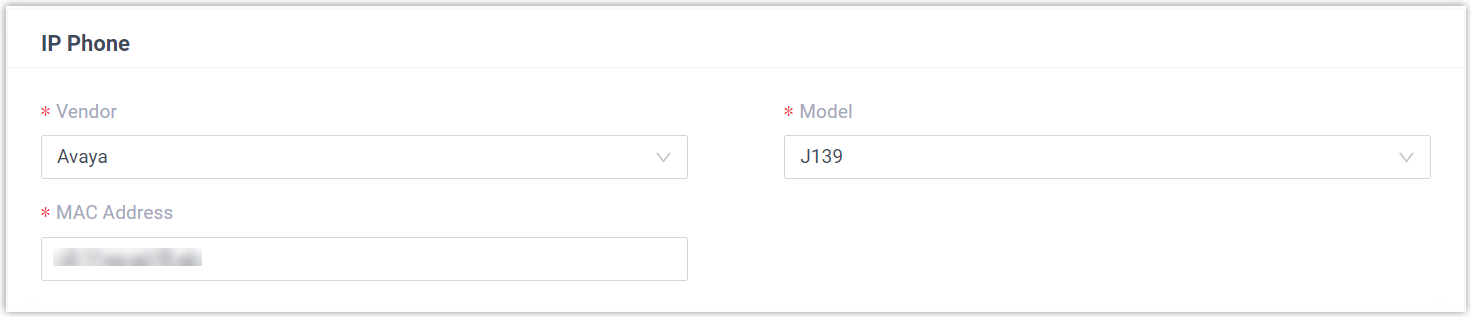

3. In the IP Phone section, fill in the phone’s details.



   • Vendor: Choose Avaya.
   • Model: Pick your phone model. This example uses J139.
   • MAC Address: Type the phone’s MAC address.

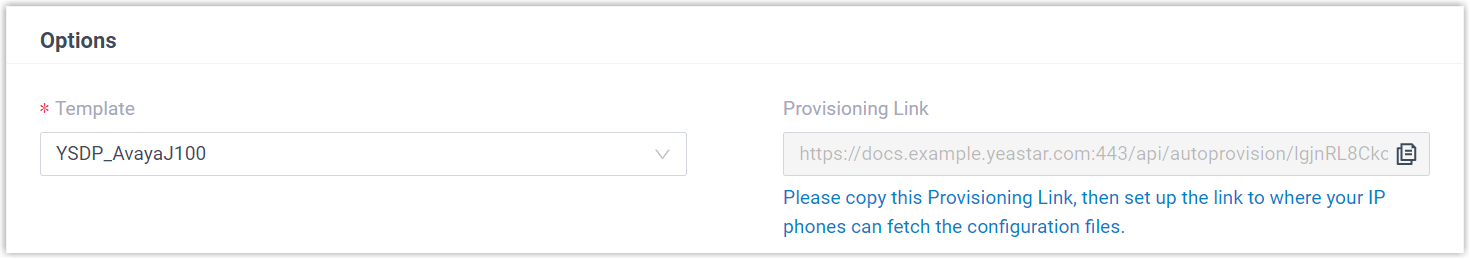

4. In the Options section, set the following.



   • Template: Select a template from the drop-down list.

     Note

     Use the default template that matches your phone model, or build your own custom auto provisioning template.

   • Provisioning Link: This link is generated automatically and points to where the phone’s configuration file is stored.

     Note

     Make a note of the provisioning link. You’ll need it when you configure DHCP option 242 in Step 2.

5. In the Assign Extension section, assign an extension to the phone.



   Tip

   If the extension you want isn’t in the drop-down list, it’s already tied to another IP phone. You have two ways to free it up:

   • Release the extension from the phone it’s currently associated with.
   • Enable concurrent registration for that extension, which lets it register on more than one device. By default, Cloud Voice permits an extension to register with only one SIP (Session Initiation Protocol) endpoint, meaning one registered phone or app.

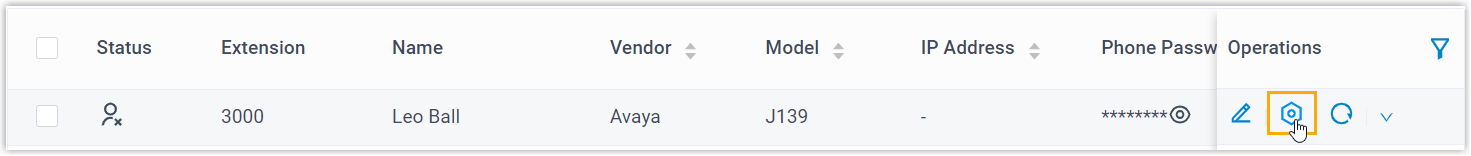

6. Click Save. The phone now appears in the Auto Provisioning phone list.

7. Set the phone’s display language.

   a. In the phone list, click the edit icon next to the Avaya phone.



   b. On the phone configuration page, scroll to the Preference section and choose the language for your phone model.



   c. Click Save.

Step 2: Configure DHCP option 242

Option 242 tells the Avaya phone where to reach Cloud Voice, so it can retrieve its configuration files on its own. The steps below use the Tftpd64 DHCP server as an example.

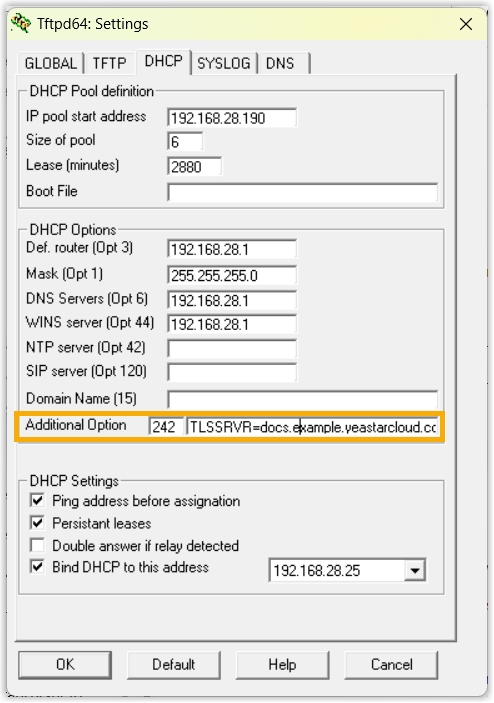

1. In Tftpd64, go to Settings > DHCP > DHCP Options.

2. Add option 242 and set it to the location of the configuration files.



   a. In the Additional Option field, enter 242. b. In the string value field, enter the provisioning link you noted in Step 1, using this format:

   TLSSRVR=your-pbx.example.com,TLSDIR=api/autoprovision/lgjnRL8CkoYFXWJd,TLSPORT=443,SIG=2

   Each parameter is one of Avaya’s provisioning settings. The TLS prefix stands for Transport Layer Security, the encrypted connection the phone uses to reach the server.

   • TLSSRVR: The Cloud Voice domain name.
   • TLSDIR: The file path on the server, for example api/autoprovision/lgjnRL8CkoYFXWJd.
   • TLSPORT: The server port.
   • SIG: The Avaya phone’s software version. Set this to 2.

3. Click OK to save.

Result

• When the phone reboots, it leases an IP address from the DHCP server, downloads its configuration from Cloud Voice over the provisioning link, and applies the settings automatically.

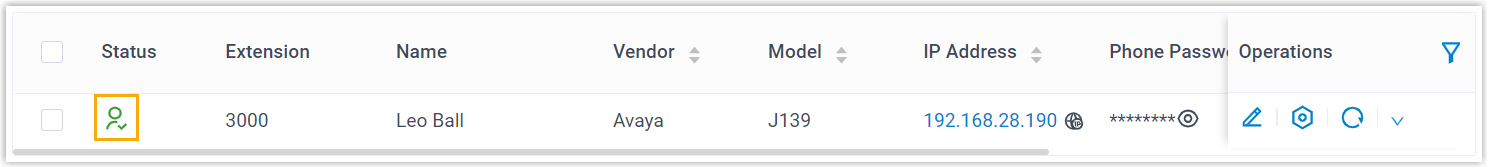

• The extension registers successfully on the phone. To confirm, check the registration status under Auto Provisioning > Phones in the web portal.
