Event Notification Overview

Event Notification keeps you aware of what is happening on your Cloud Voice system (your hosted PBX, or Private Branch Exchange, the phone system that routes your organization’s calls). Whenever a tracked event occurs, the system logs it and can alert the people you nominate through the delivery methods you enable. This page introduces the event types you can monitor, the severity levels you can assign, how contacts are notified, the email templates behind email alerts, and how event logs are cleaned up automatically.

Event types

Events fall into five categories: Operations, Telephony, System, Security, and Reminder.

Operations

Event	What it means
Administrator Login Success	The administrator signed in to the PBX management portal.
Web User Login Success	A user signed in to the PBX web portal or the Cloud Voice App.
Web User Login Failed	A sign-in attempt to the PBX web portal or the Cloud Voice App failed.
Cloud Voice App Login Failed	An extension user could not sign in from the Cloud Voice App on mobile or desktop.
Administrator Password Changed	The administrator password was changed.
Extension User Password Changed	An extension user’s password was changed.
RPS Request Success	The RPS (redirection and provisioning) request for one or more IP phones succeeded.
RPS Request Failed	The RPS request for one or more IP phones failed.

Telephony

Event	What it means
SIP Trunk Registration Failed	The system could not register with or connect to a SIP (Session Initiation Protocol, the standard that sets up and tears down voice calls) trunk.
SIP Trunk Re-registered	The system successfully re-registered with or reconnected to a SIP trunk.
Emergency Call Dialed Out	An extension user placed an emergency call.
AI Receptionist Call Line Abnormal	The AI receptionist call line is in an abnormal state and cannot take calls.
AI Receptionist Call Line Restored	The AI receptionist call line recovered and can take calls again.

System

Event	What it means
Auto Cleanup Reminder	Storage use reached 90% of the allowed limit.
System Reboot	The PBX restarted after a configuration change, or restarted on its own after a system crash.
System Restore	The PBX was restored.
New System Firmware Detected	The PBX automatically detected a new firmware version.
System Upgrade Completed	The PBX finished upgrading.
Mail Server Error	The email server (the built-in SMTP (Simple Mail Transfer Protocol) server or a custom SMTP server) could not send email.
Recording Usage is About to Reach the Capacity Limit	Recording storage is approaching its total capacity.
Abnormal Core Call Services	A deadlock was detected in the core call process.
Core Call Services Recovery Completed	The core call process recovered successfully.
Legacy CDR Will Be Cleaned Up Gradually	CDRs (Call Detail Records, the log entry saved for each call) created on firmware 84.21.0.66 or earlier are being removed gradually.
Legacy CDRs Have Been Fully Cleaned Up	All CDRs created on firmware 84.21.0.66 or earlier have been removed.
Concurrent Calls Overload	Simultaneous calls reached the PBX limit.
Lost Connectivity to Shared Trunk	A shared trunk lost connectivity unexpectedly.
Onsite Proxy Error	The PBX lost its connection to the Onsite Proxy, or Onsite Proxy resource use exceeded a threshold (CPU above 85%, memory above 85%, or disk above 95%).

Caution

The Mail Server Error event cannot be delivered by email, because email is the thing that has failed. The system falls back to the Call Extension and Call Mobile methods only. Make sure at least one of these is enabled on your notification contacts, or you will never be told that email delivery is broken.

Security

Event	What it means
Web User Blocked Out	The system blocked the source IP after more than 5 failed web logins in 24 hours, or after more than 5 accounts were locked in 24 hours.
Cloud Voice App User Blocked Out	The system blocked the source IP after more than 5 failed Cloud Voice App logins (mobile or desktop) in 24 hours, or after more than 5 accounts were locked in 24 hours.
Extension Registration Blocked Out	The system blocked the source IP after more than 20 registration failures, or after more than 3 accounts were locked.
Auto Defense IP Blocked Out	A monitored service or port hit the configured Number of Packets within its Time Interval.
Outbound Call Frequency Exceeded	An extension exceeded the Number of Calls allowed within the Time Period defined in an Outbound Call Frequency Restriction rule.
Outbound Call to a Disallowed Country	An extension user placed an outbound call to a country that is not permitted.
API Authentication Blocked Out	The system blocked the source IP address after too many failed API (Application Programming Interface) authentication attempts.
Cloud Voice App SDK Authentication Blocked Out	The system blocked the source IP address after too many failed Cloud Voice App SDK (Software Development Kit) authentication attempts.

Reminder

Event	What it means
Plan Expiration Reminder	Your current plan will expire soon.
Video Conferencing Usage Has Reached 90% of Time Limit	Video conferencing has used 90% of its annual time allowance.
Video Conferencing Usage Limit Reached	Video conferencing has reached its annual usage limit.
Failed to Archive File(s)	A job to archive recording files or backup files to an external server failed.
Message campaign failed to send	A message campaign could not deliver some of its messages.
Failed to Renew Certificate	The domain certificate could not be refreshed automatically.
Your AI Transcription Usage is Reaching the Capacity Limit	AI transcription usage (used minutes divided by total minutes) for either the one-time capacity or the monthly quota pack reached a configured threshold.
AI Transcription Limit Reached	All AI transcription minutes, across both the one-time capacity and the monthly quota pack, have been used.
Poor Call Quality Reminder	A specific call leg experienced poor call quality.
Inbound Call Rejected due to STIR/SHAKEN Verification Failure	An inbound call was rejected because its verification status matched the rejection criteria in the shared trunk’s STIR/SHAKEN policy. STIR/SHAKEN is the industry standard for confirming that a caller ID has not been spoofed.
Your AI Receptionist Usage is Reaching the Capacity Limit	AI receptionist usage (used minutes divided by total minutes) for either the one-time capacity or the monthly quota pack reached a configured threshold.
AI Receptionist Limit Reached	All AI receptionist minutes, across both the one-time capacity and the monthly quota pack, have been used.

Note

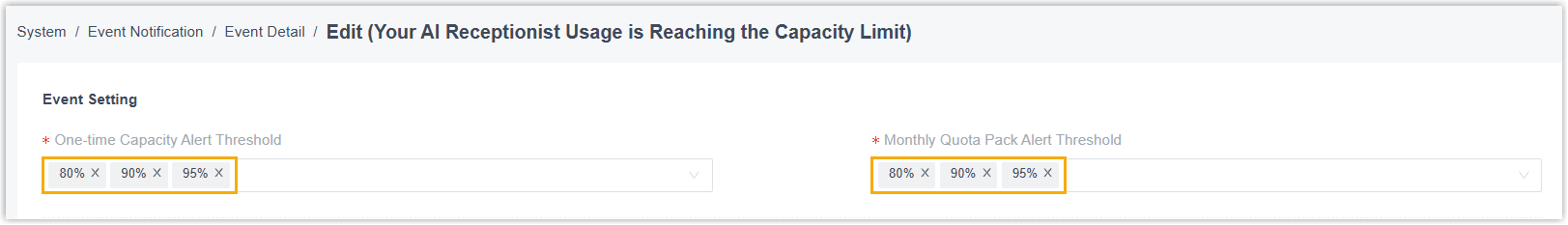

The AI transcription and AI receptionist usage reminders use default thresholds of 80%, 90%, and 95%. You can set your own thresholds for the one-time capacity and the monthly quota pack separately under System > Event Notification > Event Detail > Event Setting.

Event levels

An event level signals how serious or important an event is. Assigning the right level helps recipients focus on what matters and avoid a flood of repetitive alerts. Cloud Voice offers three levels:

• Information: General updates for the recipient’s awareness.
• Warning: A component or application is not in an ideal state, and continuing could lead to errors.
• Alert: A problem that needs prompt attention.

Note

• When an Alert-level event occurs, a pop-up reminder appears on the right side of the PBX web portal.
• Raising an event’s level to Alert from Information or Warning does not enable the pop-up reminder. Only events whose default level is Alert trigger the pop-up.

Notification contacts and methods

Notification contacts can be internal users or external users. When an event fires, Cloud Voice can reach them in any of these ways:

• Send Email
• Call Extension
• Call Mobile

Tip

Email can sit unread for hours. For your most urgent events, give a contact the Call Extension or Call Mobile method so a person is actually reached. These two methods are also your only safety net for the Mail Server Error event, which cannot be delivered by email.

For details on adding and maintaining recipients, see Manage Notification Contacts.

Notification email templates

When a contact’s notification method is Send Email, the system sends the alert using the email template that matches the event. Cloud Voice ships a default template for every event, and you can tailor these templates to your needs.

For details, see Customize Email Templates.

Auto cleanup of event logs

By default, once event logs reach 50,000 entries, the system removes the oldest ones automatically. You can change this limit or, instead, cap how many days logs are kept.

For details, see Auto Cleanup Settings.
