Integrate an SMS Service Using the SMS API

Cloud Voice can hand message delivery off to an outside SMS (Short Message Service) provider through a generic SMS API. An API (Application Programming Interface) is an agreed set of web requests that lets two systems exchange data. The provider plugs its own messaging platform into your phone system: Cloud Voice calls the provider’s API to send outbound text and picture (MMS, Multimedia Messaging Service) messages, and the provider posts inbound messages back to Cloud Voice through a webhook (an automatic HTTP request the provider sends to a Cloud Voice URL whenever a new message arrives). This page describes what each side must implement, the request and response formats involved, and how an administrator adds the resulting SMS channel in Cloud Voice.

Requirements

Both Cloud Voice and your SMS service provider must meet the following conditions before the integration will work.

Cloud Voice

• Firmware: version 84.23.0.24 or later.
• Domain name: the system domain must not contain any underscore characters. An underscore causes the channel to fail authentication or to stop receiving messages.
• Domain certificate: a valid domain certificate must be installed.

Note

If your Cloud Voice system uses a custom root domain rather than the default domain supplied with your service, install a valid certificate for that domain first. Without one, the channel will fail authentication or fail to receive messages.

SMS service provider

• API: the provider exposes an HTTPS REST endpoint (a standard web address that accepts requests over a secure connection) for sending messages, and, if it wants Cloud Voice to prove its identity, an optional HTTPS endpoint for verifying authentication.
• Customer portal: the provider’s portal issues an API key to authenticate requests from Cloud Voice, optionally a Secret for signing webhook requests, and a way to configure the webhook.
• Number format: phone numbers follow the E.164 format (the international standard of a plus sign, the country code, then the national number, for example +14102161183).

Authenticate requests

Because the integration is a two-way API exchange, the provider issues two credentials: an API key and, optionally, a Secret.

API key

The API key authenticates the requests that Cloud Voice sends to the provider. Cloud Voice includes it in the Authorization header of every request:

Authorization: Bearer {api_key}

When a request arrives, the provider checks the key. A valid key means the provider carries out the requested action; an invalid key fails the request. The key is used both in the connectivity check and in the outbound-message request described below.

Secret

The Secret authenticates the webhook requests that the provider sends to Cloud Voice. It is only needed when the provider signs its webhook requests.

For each webhook request, the provider uses the Secret with the SHA256 algorithm to produce a signature over the request body, and passes it in the X-Signature-256 header:

X-Signature-256: sha256={signature}

Caution

The signature in the header must be entirely lowercase.

On receipt, Cloud Voice recomputes the signature from the body using the same Secret and algorithm, then compares it with the value in the header. If they match, the request is genuine and Cloud Voice delivers the message; otherwise it rejects the request. See Receive messages from the provider below.

Verify channel connectivity (optional)

Note

Perform this only if your provider requires identity verification. If it does not, skip this section.

Once the SMS channel exists in Cloud Voice, the system periodically calls the provider’s API address for verifying authentication, using the API key, to confirm the channel is still reachable.

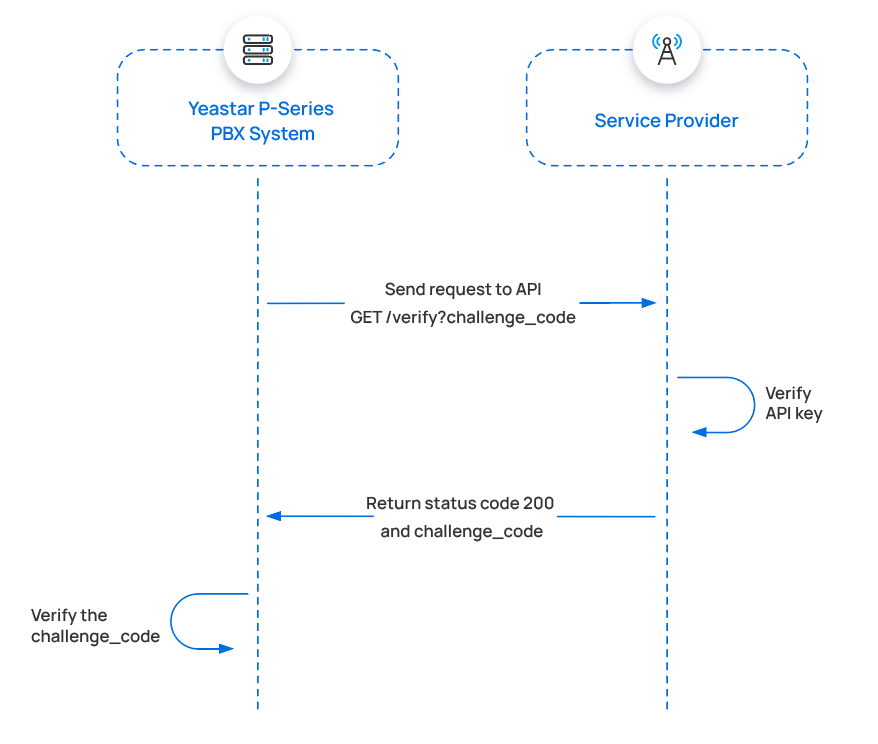

How it works

1. Cloud Voice sends an API request containing a randomly generated challenge code.
2. The provider validates the API key.
3. If the key is valid, the provider responds with status code 200 and echoes the challenge code in the response body.
4. Cloud Voice compares the returned challenge code with the one it sent. A match means the channel is connected.

Request sent by Cloud Voice

• Method: GET

• URL: the API address for verifying authentication, for example https://service-provider.example.com/verify

• Header:

  Parameter	Type	Description
  Authorization	String	The API key, in the format Bearer {api_key}.

• Query parameter:

  Parameter	Type	Description
  challenge	String	A random string generated by Cloud Voice.

Example:

GET /verify?challenge=mAWpGnyeTZgguOPYlWitGPlRJYIhoLMy HTTP/1.1
Host: service-provider.example.com
Authorization: Bearer {api_key}

Response returned by the provider

The provider replies in JSON.

Success: return status 200 and the same challenge code:

HTTP/1.1 200 OK
Body: mAWpGnyeTZgguOPYlWitGPlRJYIhoLMy

When the echoed challenge code matches the one that was sent, the channel connects and its status in Cloud Voice shows as (Connected).

Failure: return the error in this format:

Parameter	Type	Description
code	String	Error code.
title	String	Error type (you define this).
detail	String	Error detail (you define this).

For example:

HTTP/1.1 401 Unauthorized
{
    "errors": [
        {
            "code": "10004",
            "title": "Authentication failed",
            "detail": "No key found matching the ID with the provided secret."
        }
    ]
}

Troubleshooting

When the check fails, the channel shows an abnormal status. Use the error code and response body to find the cause.

Error codes defined by Cloud Voice:

Error code	Error message	Description
10001	channel.ErrInvalidPhoneNumber	Invalid phone number.
10002	channel.ErrInvalidParam	Invalid parameter in the request.
10003	channel.ErrUnsupportMedia	Resource type not supported (MMS).
10004	channel.ErrAuthFail	Authentication failed.
10005	channel.ErrAuthFail	No permission.
10006	channel.ErrTooManyRequest	Too many requests.
10007	channel.ErrServiceUnavailable	Service unavailable on the recipient’s platform.
10008	channel.ErrExceedsSizeLimit	File size exceeds the limit.

Channel status and what triggers it:

Channel status	Trigger
Unauthorized	Authentication fails and the provider returns 401, 403, or 404; or the returned challenge code does not match the one sent.
Services of the recipient platform are unavailable	The provider returns 500.
Unknown	The provider returns a status code other than 401/403/404/500 and includes error details in the format above.
Request Failed	The provider returns no status code (for example, a TCP problem or a non-existent domain); or it returns a code other than 401/403/404/500 with no body, or a body that is not valid JSON.

Send messages through the provider

When a Cloud Voice user sends a message, Cloud Voice calls the provider’s send-message API with the API key so the provider can deliver it to the external recipient.

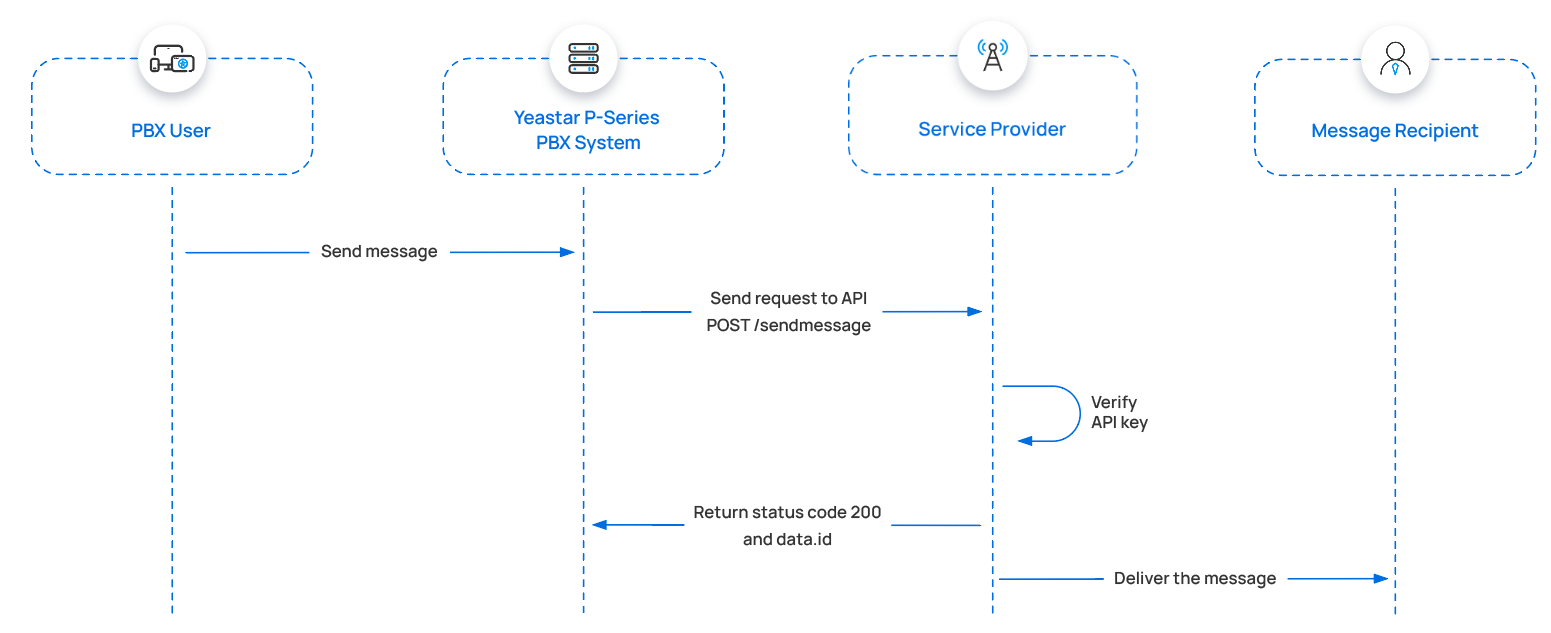

How it works

1. A Cloud Voice user sends a message.
2. Cloud Voice calls the provider’s send-message API.
3. The provider validates the API key.
4. If the key is valid, the provider returns status 200 and a data.id carrying the message’s unique ID.
5. The provider delivers the message to the recipient.

Request sent by Cloud Voice

• Method: POST

• URL: the API address for sending messages, for example https://service-provider.example.com/sendmessage

• Headers:

  Parameter	Type	Description
  Content-Type	String	Content type of the payload. Value: application/json.
  Authorization	String	The API key, in the format Bearer {api_key}.

• Body:

  Parameter	Type	Description
  from	String	Sender’s phone number, in E.164 format (for example, +8618012121222).
  to	String	Recipient’s phone number, in E.164 format (for example, +8618012121223).
  text	String	Text content of the message.
  media_urls	Array<String>	URL(s) pointing to the message’s media content.

Send an SMS message:

POST /sendmessage HTTP/1.1
Host: service-provider.example.com
Content-Type: application/json
Authorization: Bearer {api_key}

{
    "from": "+8618012121222",
    "text": "Hello, World!",
    "to": "+8618012121223"
}

Send an MMS message:

POST /sendmessage HTTP/1.1
Host: service-provider.example.com
Content-Type: application/json
Authorization: Bearer {api_key}

{
    "from": "+8618012121222",
    "to": "+8618012121223",
    "media_urls": ["https://pbx.example.com/api/chat/70dee7e2f95041ca890f222ace06c2dc"]
}

Response returned by the provider

The provider replies in JSON.

Success: return status 200 and a data.id with the unique message ID:

HTTP/1.1 200 OK
{
    "data": {
        "id": "b301ed3f-1490-491f-995f-6e64e69674d4"
    }
}

Note

The message ID is required and must be different on every request.

Failure: return the error using the same code / title / detail format:

HTTP/1.1 400 Bad Request
{
    "errors": [
        {
            "code": "10001",
            "title": "Invalid 'to' address",
            "detail": "The 'to' address should be a single valid number."
        }
    ]
}

Troubleshooting

If a message cannot be delivered, Cloud Voice shows an error on the sender’s Cloud Voice App. Use the error code and response body to find the cause.

Error codes defined by Cloud Voice:

Error code	Error message	Description
10001	channel.ErrInvalidPhoneNumber	Invalid phone number.
10002	channel.ErrInvalidParam	Invalid parameter in the request.
10003	channel.ErrUnsupportMedia	Resource type not supported (MMS).
10004	channel.ErrAuthFail	Authentication failed.
10005	channel.ErrAuthFail	No permission.
10006	channel.ErrTooManyRequest	Too many requests.
10007	channel.ErrServiceUnavailable	Service unavailable on the recipient’s platform.
10008	channel.ErrExceedsSizeLimit	File size exceeds the limit.

The prompt shown to the user and what triggers it:

Error prompt	Trigger
Failed to send	The provider returns no data.id; or returns 404 (service not found); or delivery fails and the provider returns error details in the format above; or delivery fails with no error body, or a body that is not valid JSON.
Authentication Failed	The provider returns 401, or error code 10004 or 10005.
Recipient Platform Service Unavailable	The provider returns 403, or error code 10007.
Invalid Phone Number	The provider returns error code 10001.
Invalid Parameter	The provider returns error code 10002.
This type of message is not supported due to the restriction of the recipient platform.	The provider returns error code 10003.
Too frequent operations. Please try again later.	The provider returns error code 10006.
The file size exceeds the limit of the recipient’s platform.	The provider returns error code 10008.

Receive messages from the provider

Cloud Voice receives inbound messages through a phone number that the provider hosts. When someone messages that number, the provider posts the message to the Cloud Voice webhook URL.

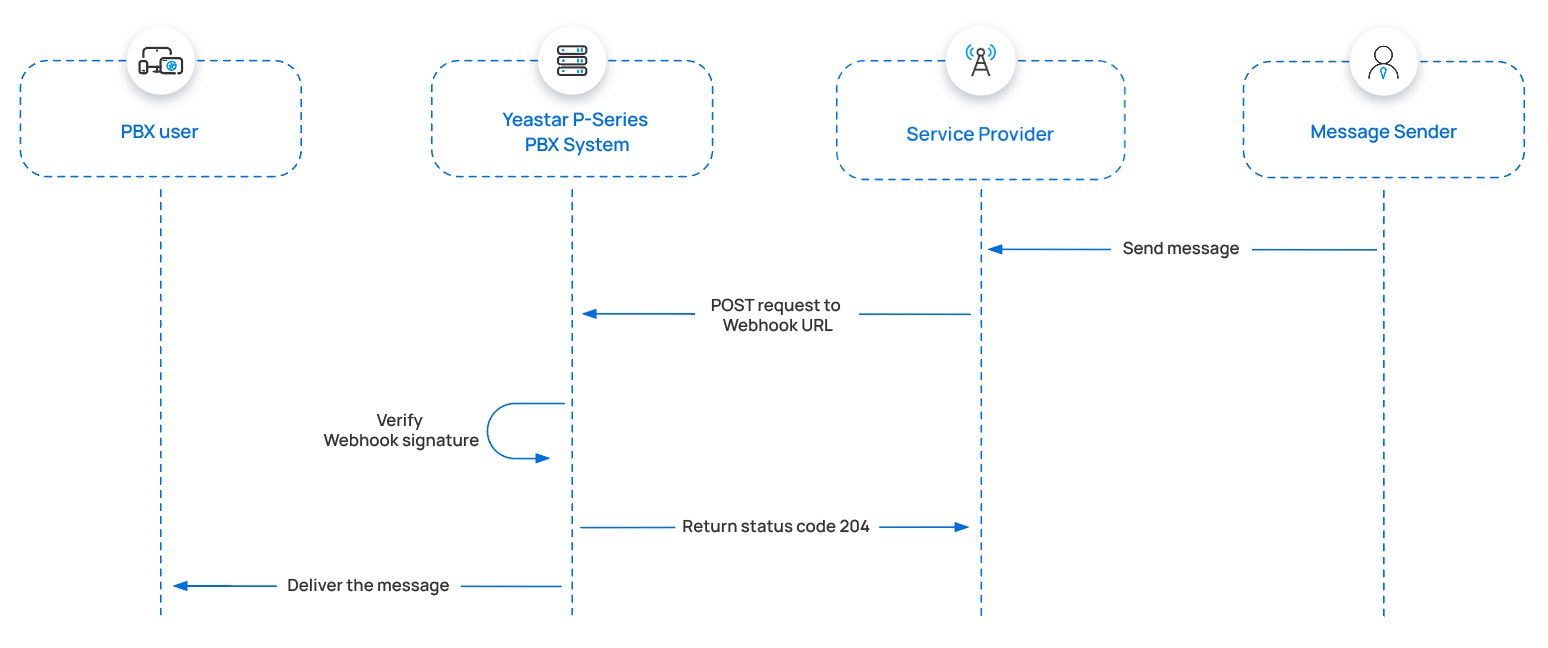

How it works

Note

Signature verification only happens when the provider requires it. If it does not, skip the signature-related steps.

1. An external sender sends a message.
2. The provider posts a request to the Cloud Voice webhook URL, with the inbound message in the body and a SHA256 signature in the header.
3. Cloud Voice verifies the signature: using the provider’s Secret, it recomputes a SHA256 signature over the received body and compares it with the header value. If they match, the request is valid and Cloud Voice returns status 204.
4. Cloud Voice delivers the message to the user.

Request sent by the provider

• Method: POST

• URL: the webhook URL that Cloud Voice provides, for example https://pbx.example.com/api/v1.0/webhook/general/429ced149ff9437695be795aff38407b

• Headers:

  Parameter	Type	Description
  Content-Type	String	Content type of the payload. Value: application/json.
  X-Signature-256	String	The webhook signature, in the format sha256={signature}, where the signature is the lowercase SHA256 of the body computed with the Secret.

• Body (only mandatory fields are listed; the provider may add more):

  Parameter	Required	Type	Description
  data.event_type	Yes	String	Event type. Value: message.received.
  data.payload.id	Yes	String	Message ID. Maximum 255 characters, and must be different every time.
  data.payload.from.phone_number	Yes	String	Sender’s phone number, in E.164 format.
  data.payload.to.phone_number	Yes	String	Recipient’s phone number, in E.164 format.
  data.payload.text	Yes	String	Text content of the message. Provide either data.payload.text or data.payload.media.
  data.payload.media	Yes	Array<media>	Information and URL for the message’s media content. Provide either data.payload.text or data.payload.media.
  data.payload.received_at	Yes	String	Time the message was received, in ISO 8601 format YYYY-MM-DDTHH:MM:SS.mmm+/-HH:MM (for example, 2019-12-09T20:16:07.588+08:00).
  data.payload.record_type	Yes	String	Record type. Value: message.

  The media object:

  Parameter	Required	Type	Description
  content_type	No	String	Type of the media file.
  sha256	No	String	SHA256 value of the media file.
  size	No	Integer	File size.
  url	Yes	String	URL pointing to the media file.

Tip

For valid content_type values, see the IANA media types.

A webhook request that delivers an inbound message looks like this:

POST /api/v1.0/webhook/general/429ced149ff9437695be795aff38407b HTTP/1.1
Host: pbx.example.com
Content-Type: application/json
X-Signature-256: sha256={signature}

{
    "data": {
        "event_type": "message.received",
        "id": "b301ed3f-1490-491f-995f-6e64e69674d4",
        "occurred_at": "2019-12-09T20:16:07.588+00:00",
        "payload": {
            "direction": "inbound",
            "from": {
                "carrier": "T-Mobile USA",
                "line_type": "long_code",
                "phone_number": "+8618012121222"
            },
            "id": "84cca175-9755-4859-b67f-4730d7f58aa3",
            "media": [
                {
                    "content_type": "image/png",
                    "sha256": null,
                    "url": "https://media.example.com/mms/image.png"
                }
            ],
            "received_at": "2019-12-09T20:16:07.503+00:00",
            "record_type": "message",
            "text": "Hello from Cloud Voice!",
            "to": [
                {
                    "carrier": "Cloud Voice",
                    "line_type": "Wireless",
                    "phone_number": "+8618012121223"
                }
            ],
            "type": "SMS/MMS"
        },
        "record_type": "event"
    }
}

Response returned by Cloud Voice

Cloud Voice returns an HTTP status code:

Status code	Description
204	Success.
400	Bad request, returned when the signature is incorrect.

Set up the SMS channel in Cloud Voice

Once the provider has implemented its side of the integration, an administrator adds the SMS channel in Cloud Voice.

Limitations

Item	Limit
Supported message types	Determined by the provider.
File size	100 MB maximum.
File retention period	72 hours.

Caution

For multimedia messages such as images, the provider downloads the files from a link that Cloud Voice supplies. If you use an Allowed Country/Region IP Access Protection rule, make sure the country where your provider operates is permitted; otherwise the file transfer fails.

Before you start

Collect the following details.

From the provider:

• API address for sending messages
• (Optional) API address for verifying authentication
• Message sending rate limit

From the provider’s customer portal:

• API key
• (Optional) Secret
• The phone number used to send and receive messages

Note

If your business messages customers in the United States, make sure the number has completed 10DLC (10-digit long code) registration first. 10DLC is the US carrier programme that approves ordinary local numbers for application-to-person texting; without it, US carriers may filter or block your messages, disrupting delivery.

Procedure

1. In the Cloud Voice admin portal, go to Messaging > Message Channel.

2. Click Add and select SMS.

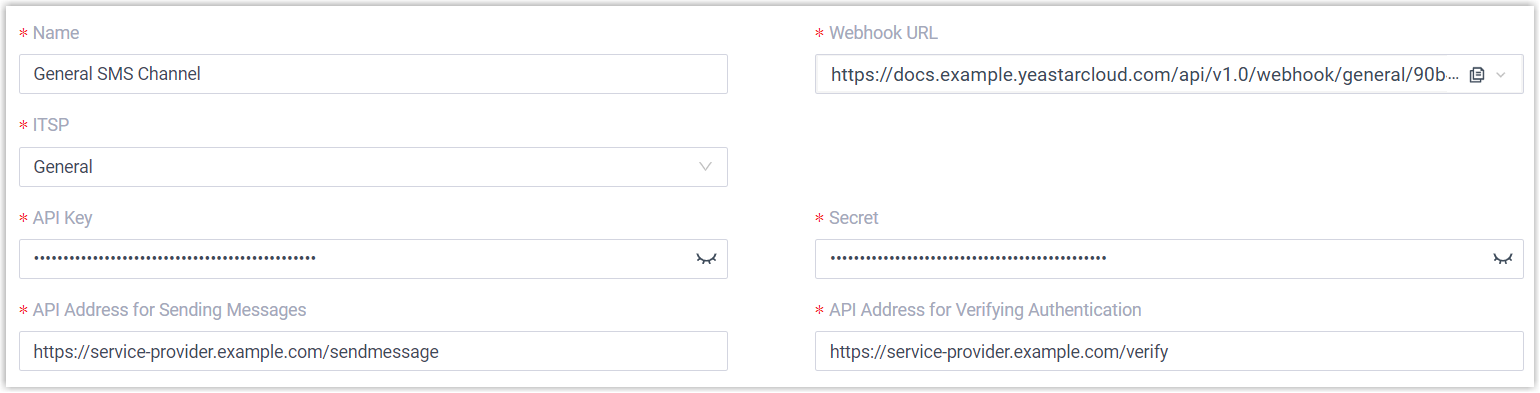

3. On the Authentication tab, complete the fields.



   • Name: a label that helps you recognize the channel.
   • ITSP (Internet Telephony Service Provider): select General.
   • API Key: the API key from the provider’s customer portal.
   • Secret: optional; enter it if the provider issued one for verification.
   • API Address for Sending Messages: the provider’s send endpoint, for example https://service-provider.example.com/sendmessage.
   • API Address for Verifying Authentication: optional; the provider’s verification endpoint, for example https://service-provider.example.com/verify.
   • Webhook URL: copy this URL, then use it to configure the messaging webhook for the phone number in the provider’s customer portal.

   Caution

   Cloud Voice cannot receive any inbound messages until this Webhook URL is registered against the phone number on the provider’s side. If inbound messages never arrive, check that the URL was saved correctly in the provider’s portal first.

4. On the Messaging Settings tab, set the sending rate, session behavior, and one or more number-routing rules (all described below). Save each rule as you add it.

5. Click Save to create the channel.

The Messaging Settings tab includes the following options.

Message Sending Rate

Set how many messages per second Cloud Voice may send. If more messages are ready than the rate allows, Cloud Voice holds the extras in a queue and releases them at the configured rate.

Caution

Do not set a rate higher than the limit your provider allows for your account: messages that exceed the provider’s limit can fail to deliver. Confirm your account’s sending-rate limit with the provider, and raise the limit on their side before raising it here.

Session settings

Setting	Description
Close Session Automatically	Select the checkbox to close sessions that have been inactive for a set period, then enter the number of days in the Session Timeout (Days) field.
Allow the Creation of Duplicate Active Sessions	Select the checkbox to allow a new session even when an active one already exists for the same sender and recipient. When enabled, if a user starts such a session in the Cloud Voice App while a matching active session already exists, a prompt appears; if the user continues, the existing session leaves the previous handler’s list and moves to the new user, along with its complete chat history.

Number routing

In the Number section, click Add to create a message-routing rule.

• Number: enter the purchased phone number, or an alphanumeric sender ID (a short text name shown to the recipient as the sender instead of a number).

  Note

  Use E.164 format, [+][country code][number], for example +14102161183.

• Destination for Inbound Messaging: choose where inbound messages for this number go.

  Option	Description
  Extension	Choose an extension. Only that user receives inbound messages from the number.
  Message Queue	Choose a queue. Every agent in the queue sees the inbound message that starts a new session, but only the agent who picks it up receives and answers the follow-up messages in that session.
  Third-Party Message Analytics Platform (Transmitted via API)	Inbound messages are automatically forwarded to a third-party analytics platform through the API for further processing.

  Note

  Forwarding to a third-party analytics platform requires that your Cloud Voice system is already integrated with that platform through the Cloud Voice API. Once this option is selected, Cloud Voice transmits inbound messages automatically; you can watch for them with the (30031) New Message Notification API event, and use the Cloud Voice Message API suite for richer message interactions.

• Extensions allowed to create messaging sessions: select the extensions that may start a message conversation with customers.

• Click Save to add the rule.

Result

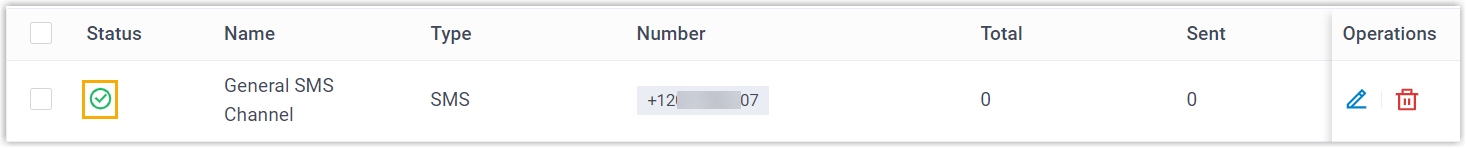

• The channel is created and appears in the Messaging list with a status of .



• Cloud Voice tracks how many messages the channel sends and receives. The Total column counts every outbound message, both successful and failed.

  Note

  • For outbound counts, Cloud Voice only tracks messages sent from agents’ Cloud Voice Apps. To work out the actual cost, ask your provider for the exact number of messages transmitted, long texts (over 160 characters) are split into segments and reassembled on receipt, which increases the count.
  • Use the time filter to narrow the statistics to a specific period.



What to do next

Send a text message to the number configured on the channel and confirm that the assigned user receives it in the Cloud Voice App.
