Integrate Cloud Voice with Salesforce CRM

Linking Cloud Voice to Salesforce lets your team place and answer calls straight from the CRM (Customer Relationship Management) system, with each Salesforce user tied to their own extension. Setting up the connection is a round trip: you first collect a redirect address from Cloud Voice, register an app in Salesforce to obtain OAuth credentials, hand those credentials back to Cloud Voice to authorize the link, and finally map Salesforce users to extensions.

Note

OAuth is an authorization standard. It lets Cloud Voice connect to Salesforce on a user’s behalf without ever storing anyone’s Salesforce password. The credentials you create below (a Consumer Key and Consumer Secret) are what the two systems use to trust each other.

Before you begin

You must sign in to Salesforce as a system administrator. Only an administrator on the Salesforce account can turn on this integration.

Step 1. Copy the redirect address from Cloud Voice

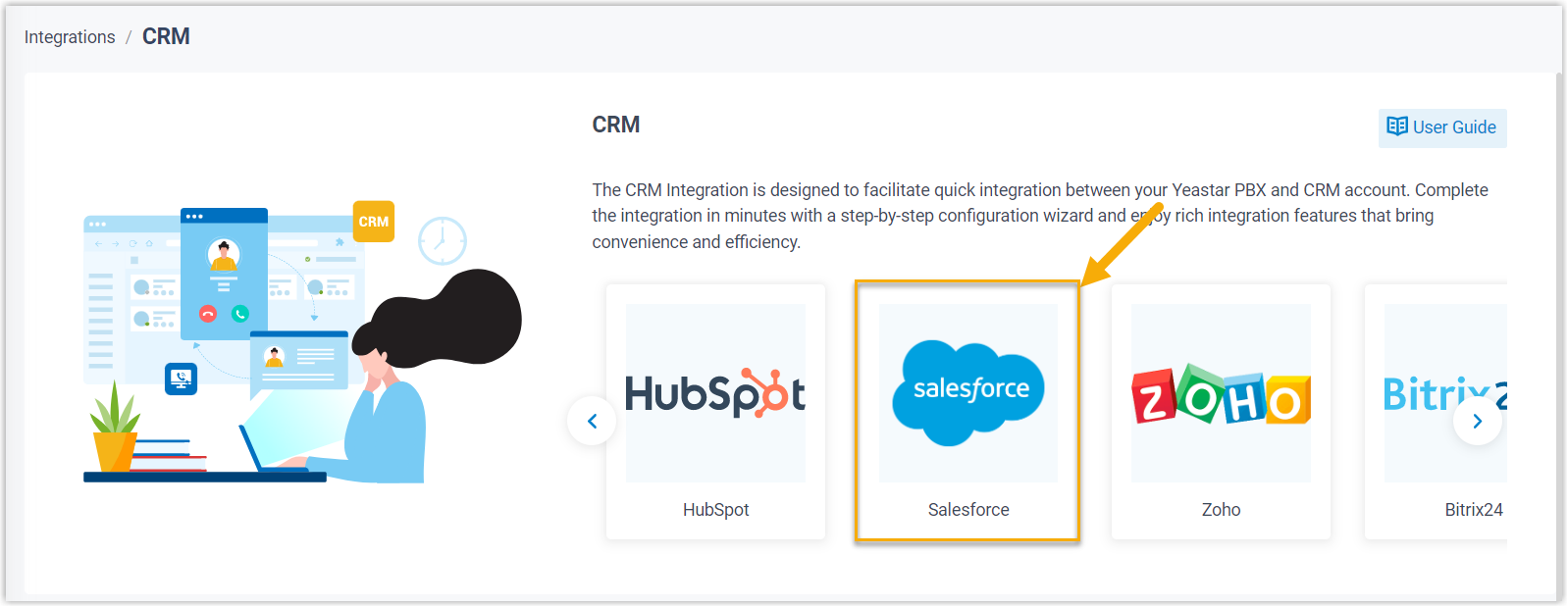

1. Sign in to the Cloud Voice web portal and open Integrations > CRM.

2. Choose Salesforce.

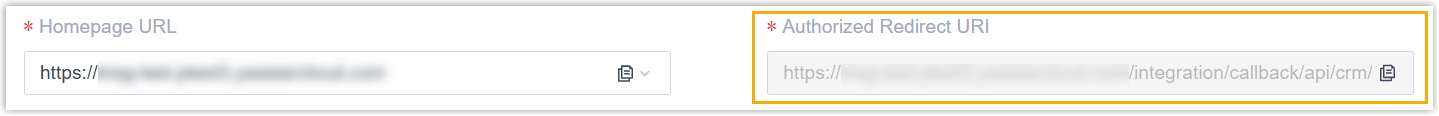

3. Under Network, pick the Homepage URL you want to use, then record the Authorized Redirect URI (the web address Salesforce returns the user to after they approve the connection). You’ll paste this value into Salesforce in the next step.



   Note

   URI stands for Uniform Resource Identifier. For this integration it is just a web address that must be copied exactly. Keep this browser tab open, or paste the value somewhere safe, so you can reuse it in Step 2.

Step 2. Register and configure an app in Salesforce

1. Sign in to Salesforce.

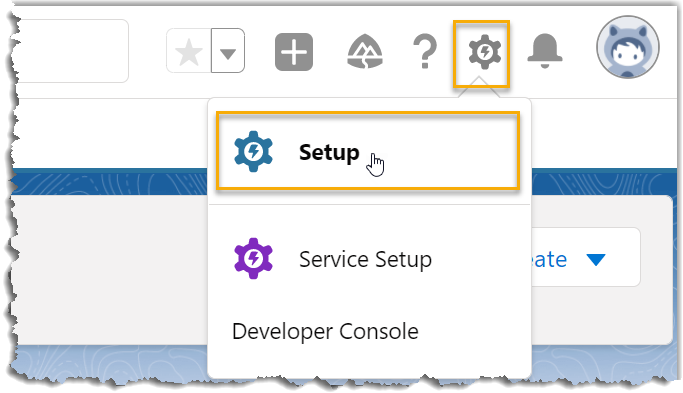

2. In the top-right corner, click the gear icon and choose Setup to open the Setup Home page.



3. In the left navigation, go to PLATFORM TOOLS > Apps > App Manager.

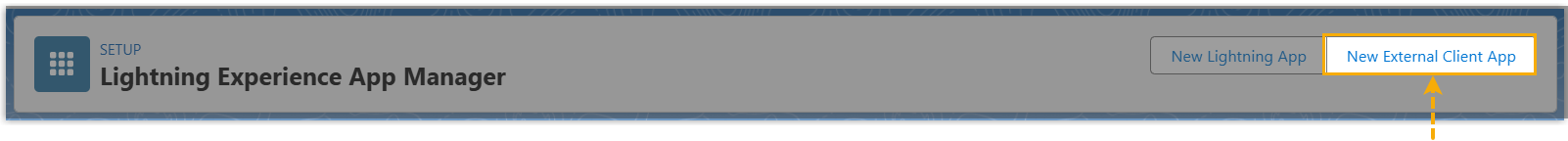

4. At the top-right of the App Manager page, click New External Client App.

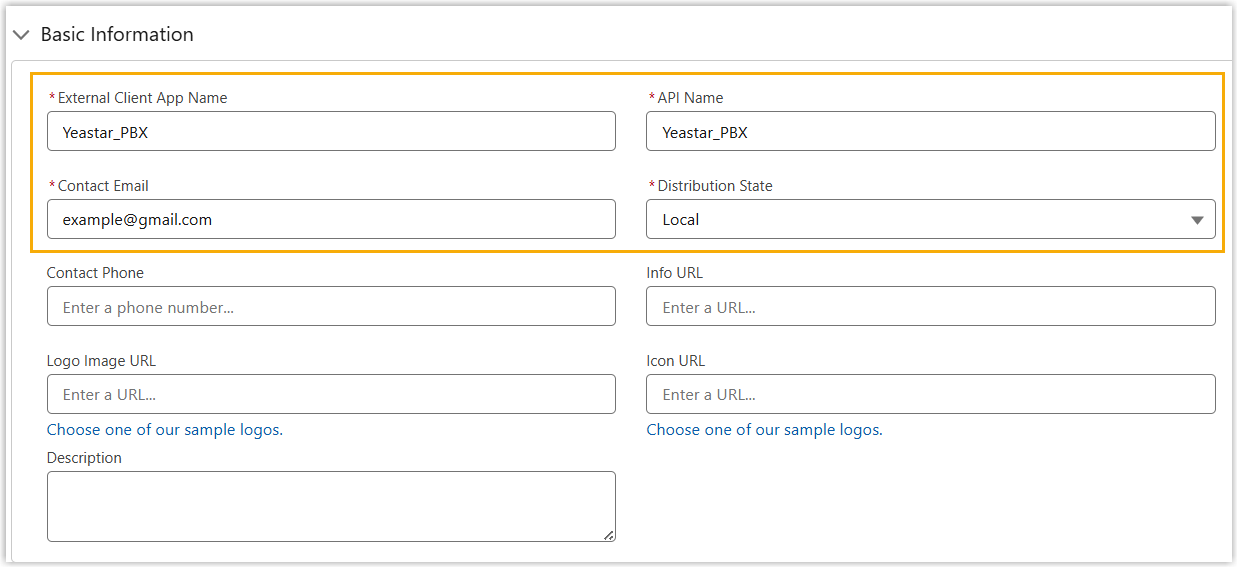

   a. In the Basic Information section, fill in the required fields and add any others you need:



   • External Client App Name: A name that helps you recognize the app later.

     Note

     Salesforce fills in the API Name automatically to match the app name.

   • Contact Email: A contact email address.

   • Distribution State: Leave the default value.

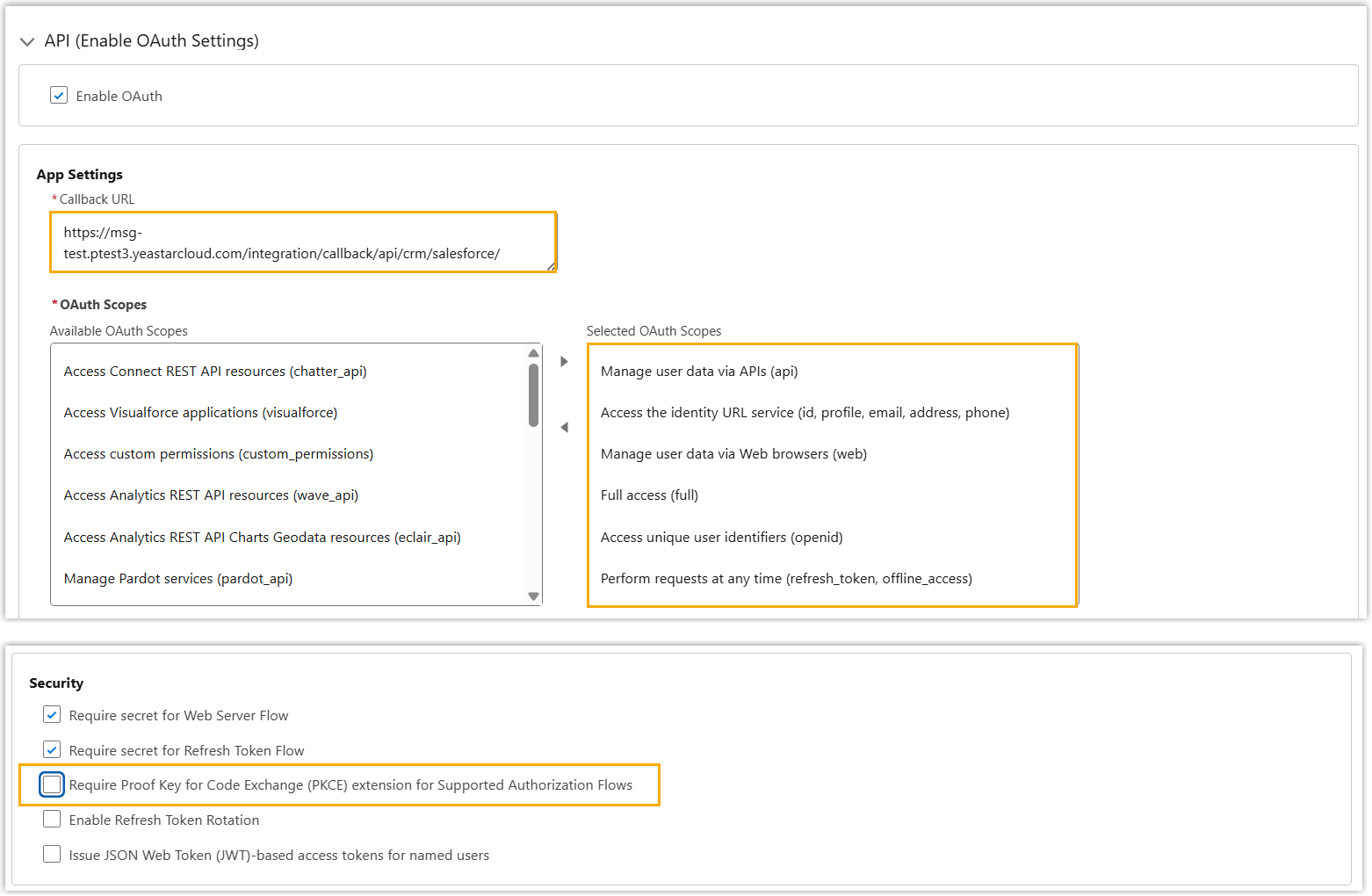

   b. In the API (Application Programming Interface) (Enable OAuth Settings) section, select Enable OAuth, then complete the configuration described below.



   Setting	What to enter
   App Settings section
   Callback URL	Paste the Authorized Redirect URI you copied from the Cloud Voice portal in Step 1.
   OAuth Scopes	Move the following permissions from Available OAuth Scopes to Selected OAuth Scopes: • Full access (full) • Manage user data via APIs (api) • Manage user data via Web browsers (web) • Access unique user identifiers (openid) • Access the identity URL service (id, profile, email, address, phone) • Perform requests at any time (refresh_token, offline_access)
   Security section
   Require Proof Key for Code Exchange (PKCE) extension for Supported Authorization Flows	Clear this checkbox.

   Caution

   Two settings in this table are easy to get wrong and both will break the authorization in Step 3:

   • The Callback URL must match the Authorized Redirect URI from Cloud Voice exactly, character for character. If you later change the Homepage URL in Cloud Voice, update this value to match.
   • Leave the PKCE checkbox cleared. If it stays selected, Salesforce will reject the authorization request.

   c. Click Save at the bottom of the page. Salesforce confirms the app was created.

5. Check the app’s authorization policy. New apps are usually set to All users can self-authorize, which grants access to every associated Salesforce user in the organization. If the app list shows a different setting, correct it:

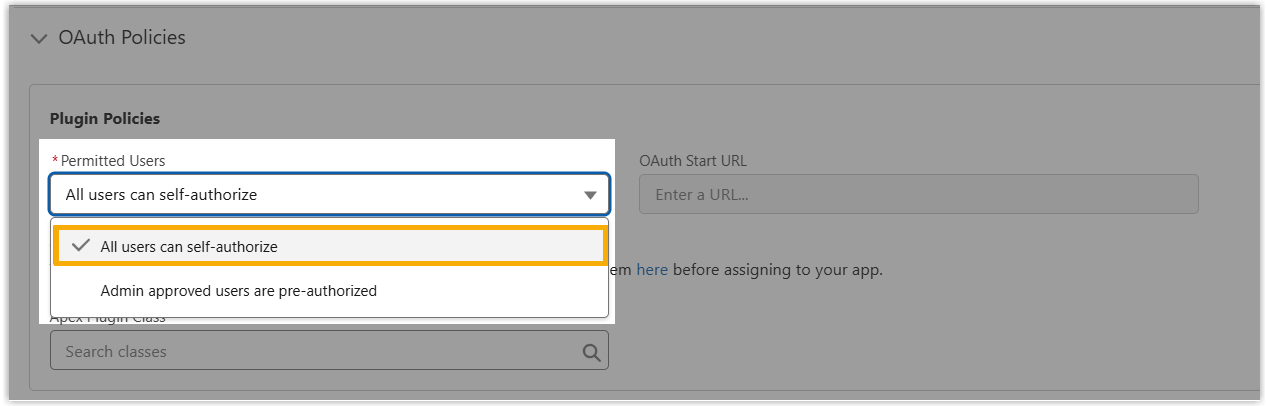

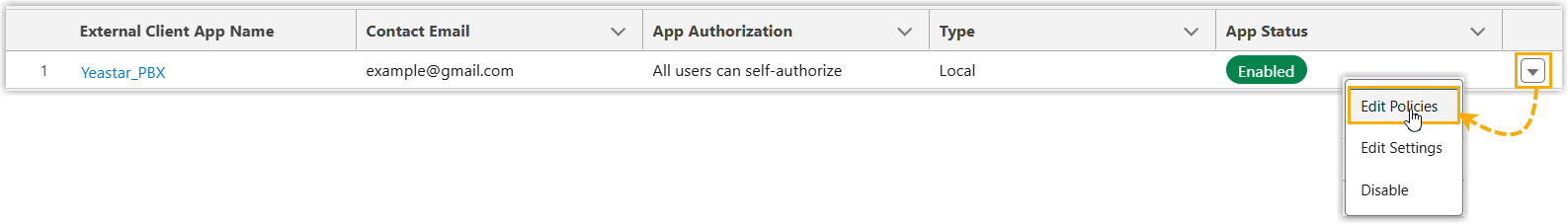

   a. Go to Apps > External Client App > External Client App Manager, click the dropdown arrow next to your new app, and choose Edit Policies. b. Scroll to OAuth Policies and set Permitted Users to All users may self-authorize.



   c. Click Save.

6. Retrieve the app’s authorization credentials, which you’ll enter into Cloud Voice later.

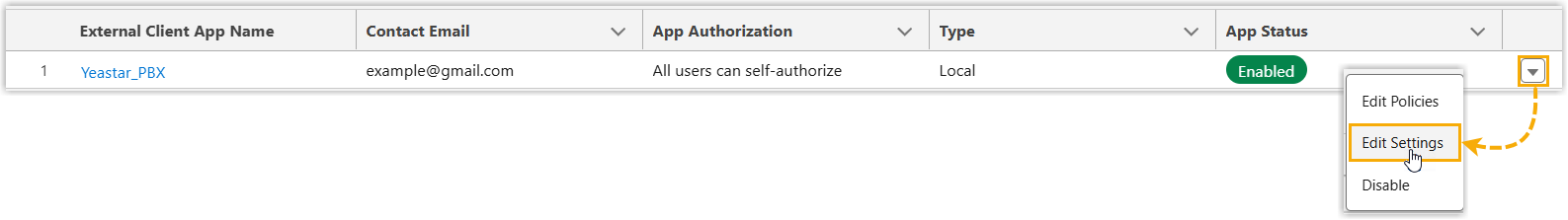

   a. Go to Apps > External Client App > External Client App Manager, click the dropdown arrow next to your new app, and choose Edit Settings. b. In the OAuth Settings section, get the API credentials:

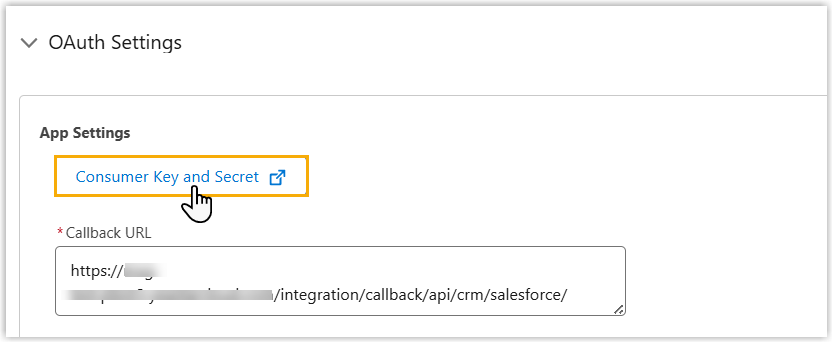

   i. Click Consumer Key and Secret. Salesforce emails a verification code to your inbox.

     ![Opening the consumer key and secret details](/images/pbx/manage-consumer-details.png)

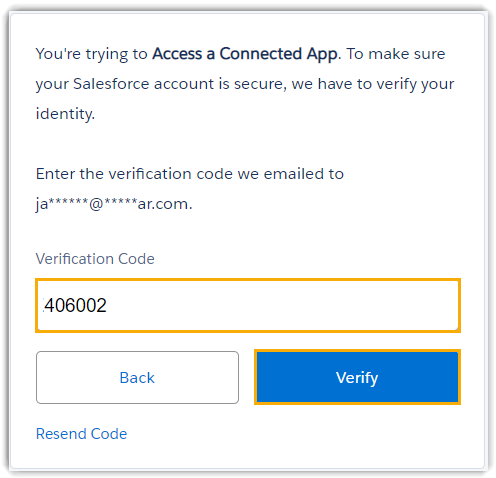

   ii. Enter the code and click Verify.

     ![Entering the Salesforce verification code](/images/pbx/sf-verif-code.png)

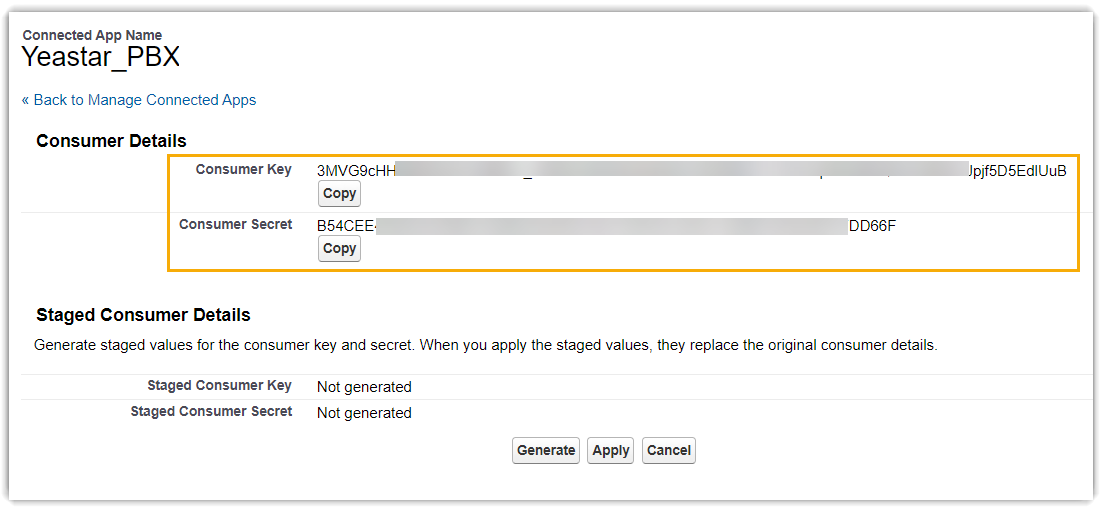

   iii. In the Consumer Details section, record the Consumer Key and Consumer Secret.

     <!-- TODO(screenshot): replace: vendor branding ("Yeastar") visible. Recapture from Cloud Voice. -->
     ![Cloud Voice, the Consumer Key and Consumer Secret values](/images/pbx/copy-sf-key.png)

     :::caution
     Treat the Consumer Key and especially the Consumer Secret like a password. Anyone who has them can reach the data in your Salesforce account. Do not paste them into chat, tickets, or shared documents, and only enter them on the trusted Cloud Voice portal in Step 3.
     :::

Step 3. Authorize Cloud Voice against Salesforce

1. Sign in to the Cloud Voice web portal and open Integrations > CRM.

2. Choose Salesforce.

3. In the Authorization section, enter the credentials from Salesforce:



   • Consumer Key: Paste the Salesforce Consumer Key.
   • Consumer Secret: Paste the Salesforce Consumer Secret.

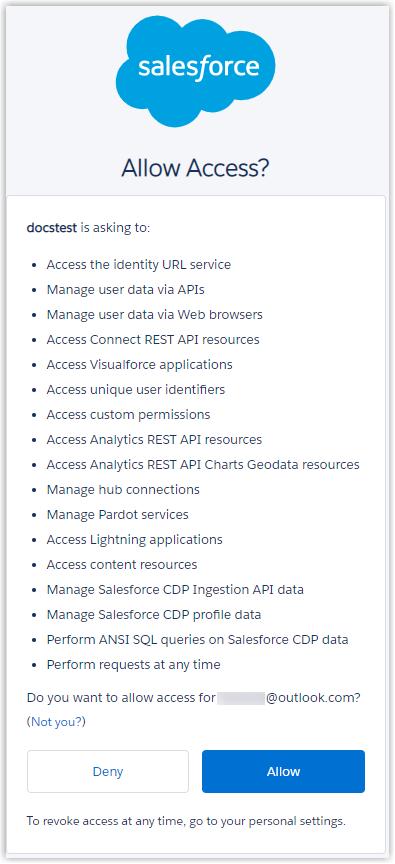

4. Click Save. A new browser tab opens asking you to grant access to your Salesforce data.



   Note

   If nothing opens after you click Save, a pop-up blocker is most likely stopping the new tab. Allow pop-ups for the Cloud Voice portal and try again.

5. Click Allow to let Cloud Voice access your CRM data. You’re returned to the Cloud Voice configuration page, where a pop-up shows the result of the authorization.



6. Click OK. When the Status field reads Connected, the Salesforce integration is active.

Step 4. Map Salesforce users to extensions

1. On the CRM integration page, click the refresh icon next to Salesforce User to pull in the current list of Salesforce users.



2. Link each Salesforce user to an extension. Choose the method that fits how email addresses are set up in your organization.

   Tip

   Automatic matching is faster and avoids mistakes. If your users already share the same email address on both their Salesforce account and their Cloud Voice extension, use it. Fall back to manual matching only for users whose two email addresses differ.

   Automatic matching

   If users have the same email address on both their Salesforce account and their extension, Cloud Voice can pair them for you:



   a. Click Associate Automatically. b. In the pop-up, click OK.

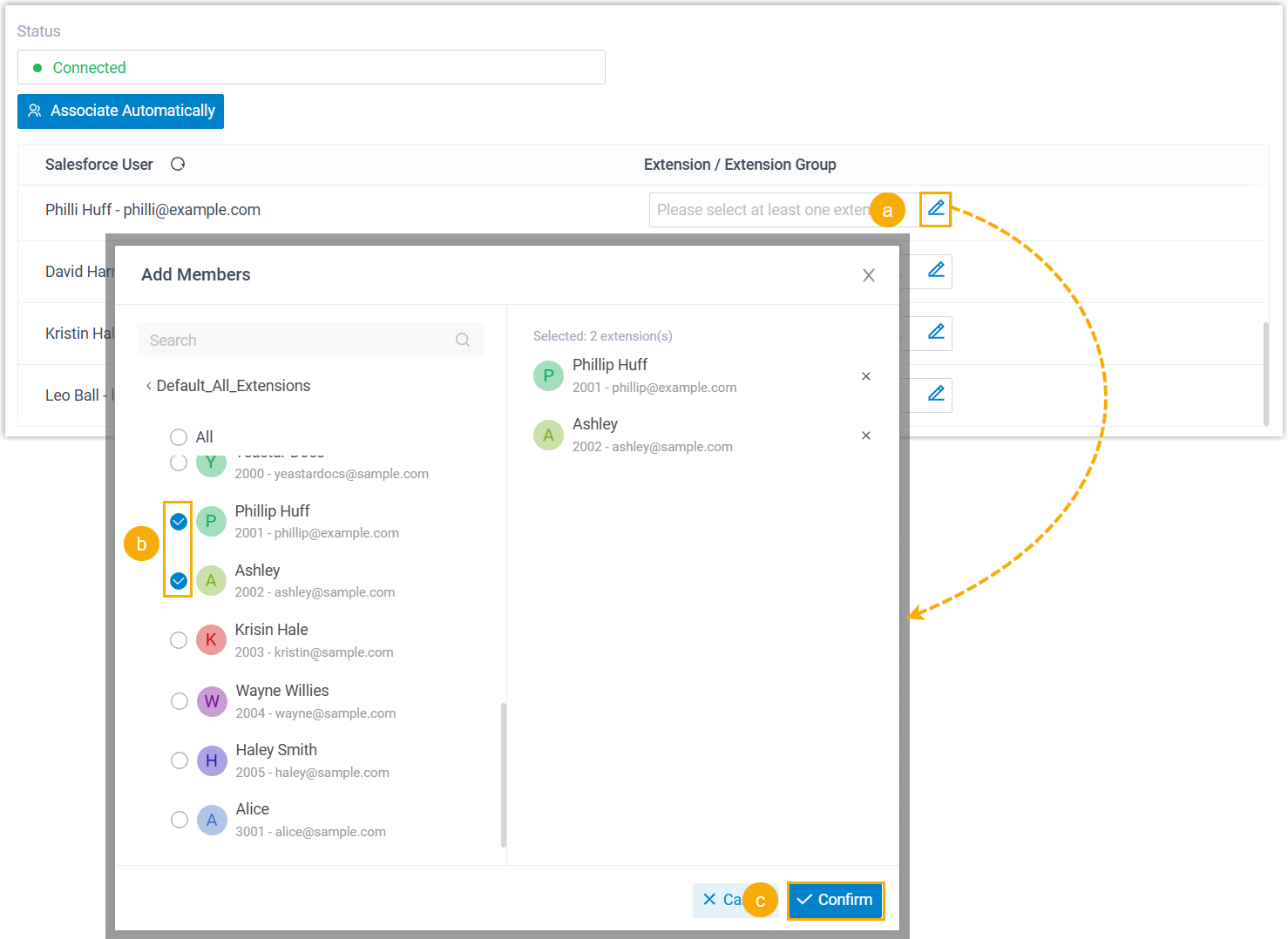

   Manual matching

   If a user’s Salesforce email differs from their extension email, pair them by hand:



   a. In the Extension / Extension Group field next to the Salesforce user, click the edit icon. b. In the pop-up, select the extension(s) for that user. c. Click Confirm.

3. Click Save.

Result

• Cloud Voice and Salesforce CRM are now connected.
• Salesforce users can place and receive calls through their extensions.

What to do next

• Set up contact synchronization from Salesforce
• Set up lead or contact creation for Salesforce
• Set up call popups for inbound calls
• Use the Salesforce integration
