View CDR

Every completed call produces a Call Detail Record (CDR). The CDR report in the web portal lets you review who called whom, when, and how each call was handled. This page walks through opening the report, narrowing it with filters, arranging columns, and saving a filter set for reuse.

Open the CDR report

1. Sign in to the web portal and go to Reports and Recordings > CDR.

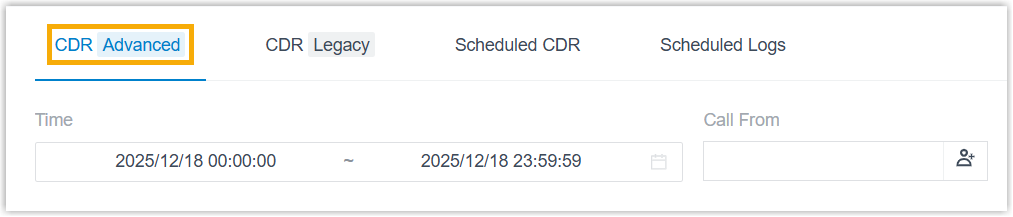

2. Select the CDR (Advanced) tab.



Note

The CDR module was rebuilt to store records in a new structure that shows call details more clearly. New records appear on the CDR (Advanced) tab, while records created before the change remain on the CDR (Legacy) tab. Older records are removed over time according to your CDR Auto Cleanup setting. The steps below cover records on the Advanced tab; to review earlier activity, work from the CDR (Legacy) tab instead.

Apply basic filters

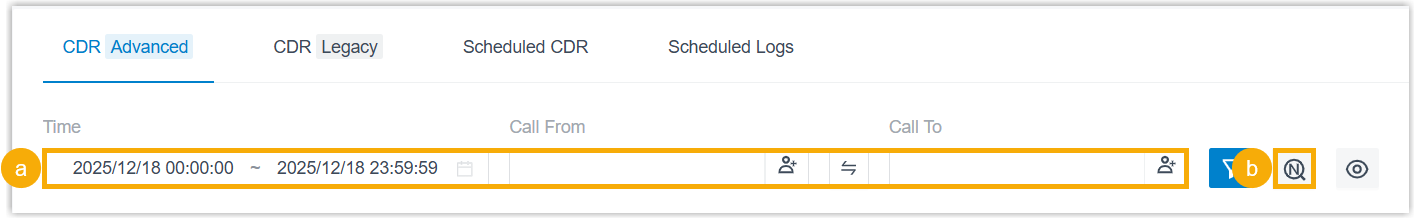

Use the basic filters to narrow the list by time and by the parties on the call.

Filter	What it does

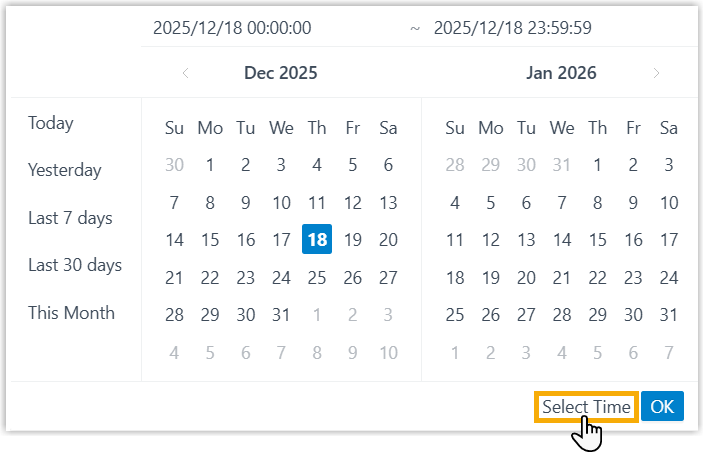

Time	Sets the start and end dates for the report. To limit results to an exact window, click Select Time and set both a start time and an end time.
Call From	Matches the caller. Type a number or name, or use the contact picker to choose extensions, extension groups, or organizations.
Call To	Matches the callee. Type a number or name, or use the contact picker to choose extensions, extension groups, or organizations. To swap the caller and callee values, click the switch icon.

Tip

To match a name or number without entering it exactly, turn on fuzzy search with the search-mode icon next to the participant fields.

Apply advanced filters

Advanced filters let you drill into specific call legs and call attributes. A call leg is one segment of a call’s path, for example the caller reaching a queue, then the queue connecting to an agent.

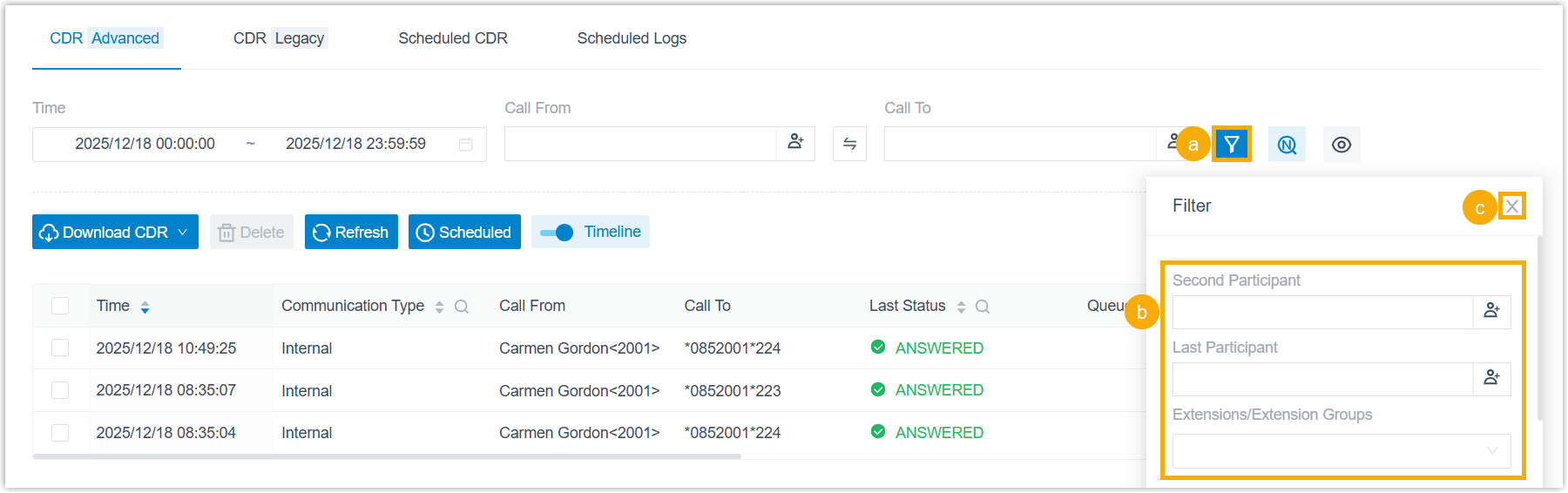

1. On the right pane, click the filter icon.



2. Set any of the following criteria.

   Filter	What it does
   Second Participant	Matches the callee on the second call leg. Type a number or name, or use the contact picker for extensions, extension groups, or organizations.
   Last Participant	Matches the callee on the final call leg. Type a number or name, or use the contact picker for extensions, extension groups, or organizations.
   Extensions/Extension Groups	Limits results to selected extensions or extension groups.
   Organization	Limits results to selected departments.
   Queue	Limits results to selected queues.
   Call Notes	Filters by disposition code (a short label used to categorize how a call was handled).
   Remark	Matches the remark added on the last call leg.
   AI Summary	Matches keywords found in the AI summary text.
   AI Receptionist Processing Result	Filters AI receptionist calls by outcome (see below).
   Trunk	Limits results to a selected trunk. A trunk is the connection that links your phone system to the outside telephone network.
   DID/DDI	Limits results to selected DID/DDI numbers. DID (Direct Inward Dialing), also called DDI (Direct Dialing In), is an external number a caller dials to reach you directly.
   Caller IP Address	Matches the caller’s IP address.
   SHAKEN Attestation	Filters by STIR/SHAKEN attestation level or verification result (see below).
   Recording Files	Shows all calls, only calls with a recording, or only calls without one.

   The AI Receptionist Processing Result options are:

   • Resolved: the AI receptionist handled the caller’s request without transferring the call.
   • Transferred: the AI receptionist passed the call to another destination.
   • Unresolved: the AI receptionist neither handled the request nor transferred the call.
   • No Processing Result: the call ended abnormally from an error or timeout, so no outcome was recorded.

   The SHAKEN Attestation options are:

   • A: calls signed with attestation level A.
   • B: calls signed with attestation level B.
   • C: calls signed with attestation level C.
   • Invalid: inbound calls carrying an invalid SHAKEN signature.
   • Unknown: inbound calls that are unsigned or whose attestation level can’t be determined.

   Note

   STIR/SHAKEN is the caller-ID verification standard used to fight spoofing. The attestation level records how strongly the originating carrier vouches for the caller’s number: A (full) is the highest level of trust, B (partial) is moderate, and C (gateway) is the lowest.

3. Click the close icon in the top-right corner to save the filter and close the panel.

Filter and arrange columns

You can choose which columns appear and reorder them to suit your review.

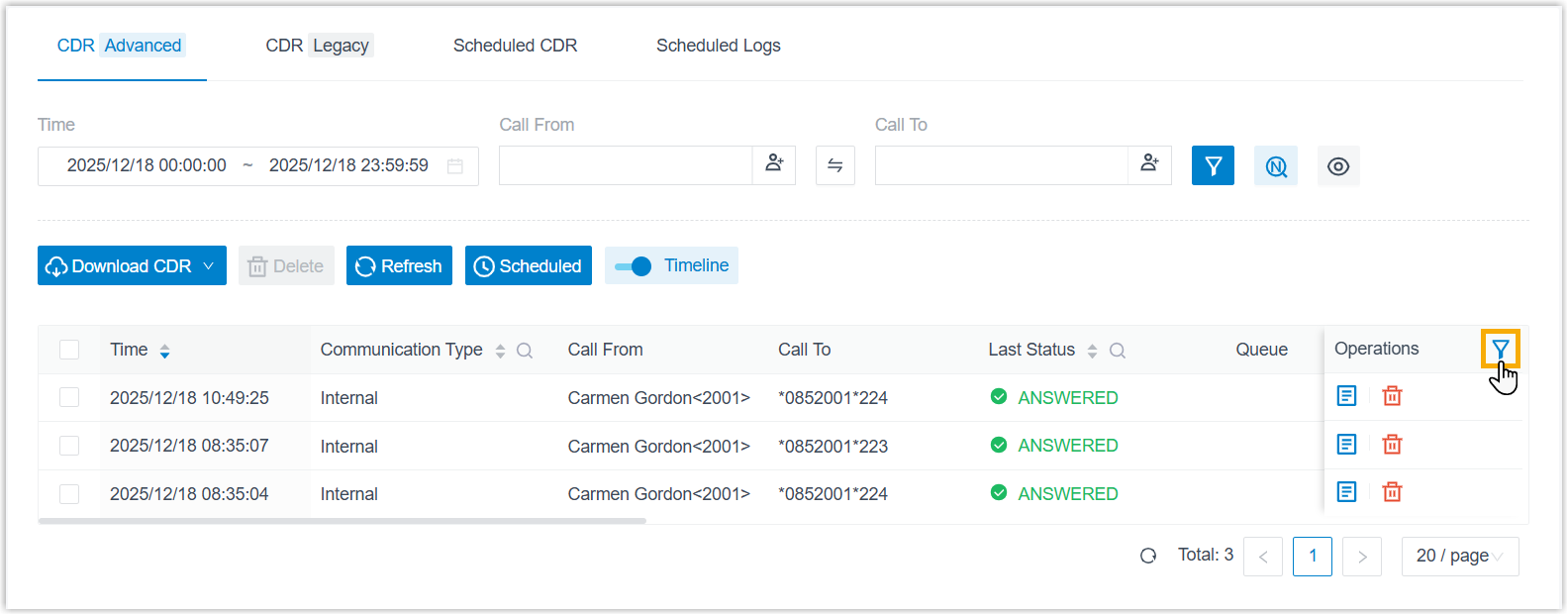

1. Click the column icon to pick the columns to display.



   Tip

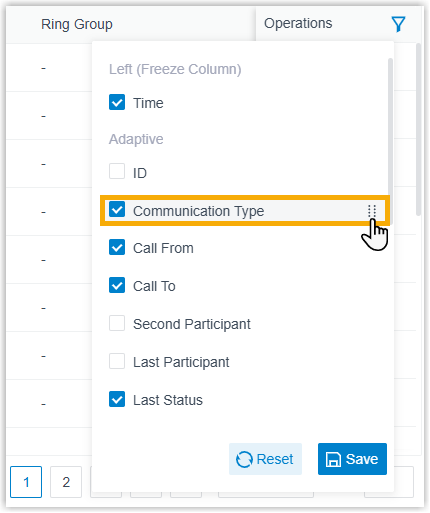

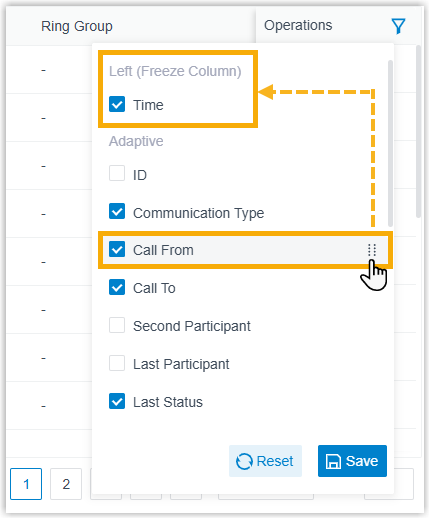

   Drag the handle next to a field to rearrange the list:

   • To keep a column visible while scrolling, drag it to Left (Freeze Column) or Right (Freeze Column).



   • To change the order, drag the field to a new position.

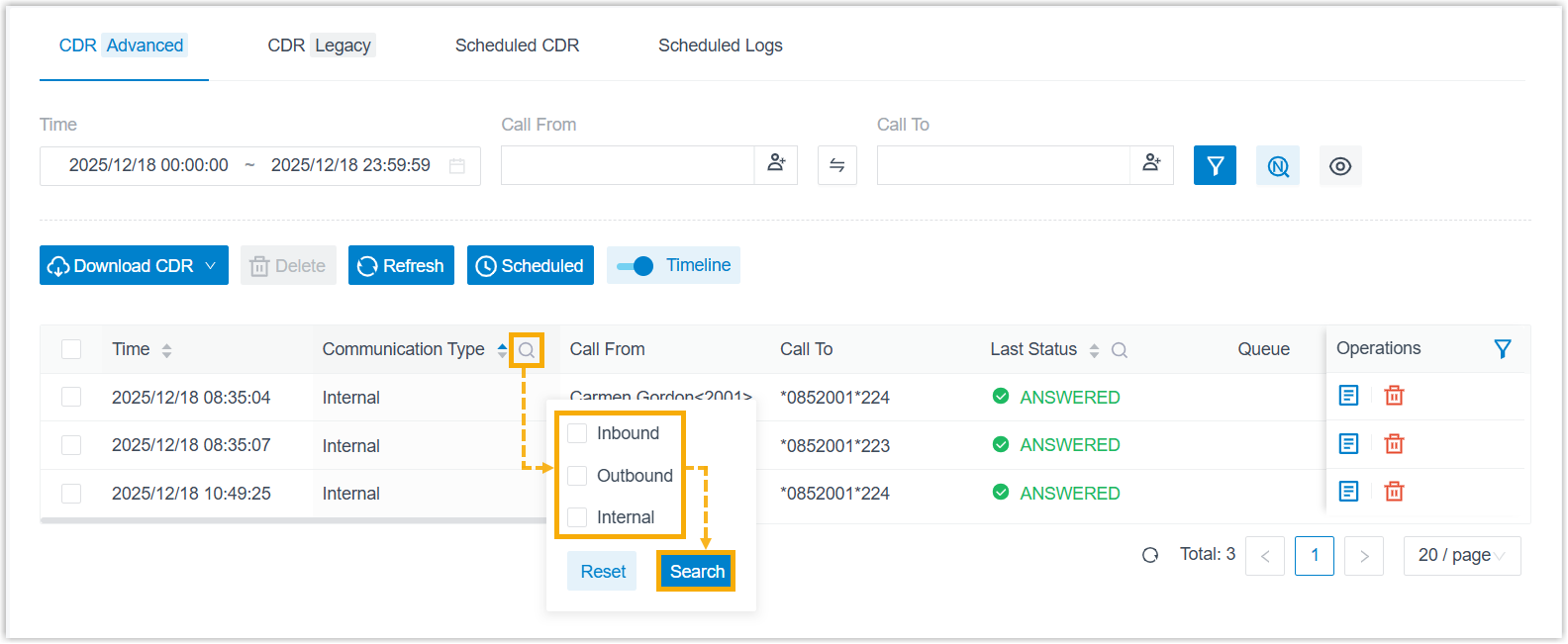

2. For any column that shows a search icon, click the icon to filter on that field.



Save a filter as a view

Once you have a filter set you use often, save it as a view so you can reapply it in one step.

Note

You can keep up to 10 custom views.

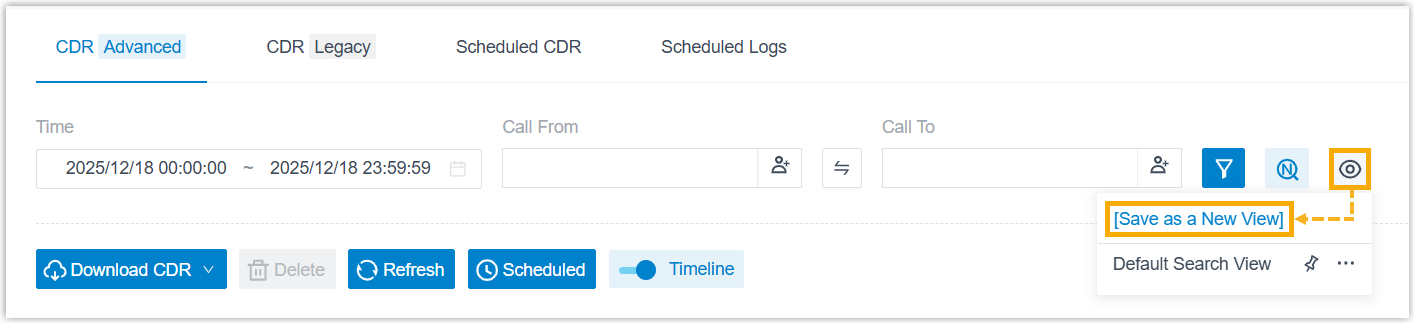

1. On the right pane, click the check icon and select Save as a New View.

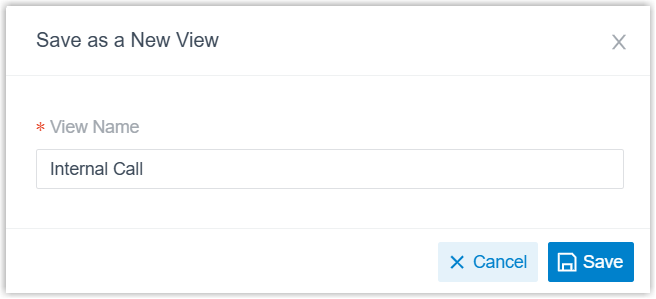

2. Enter a name for the view and click Save.



Tip

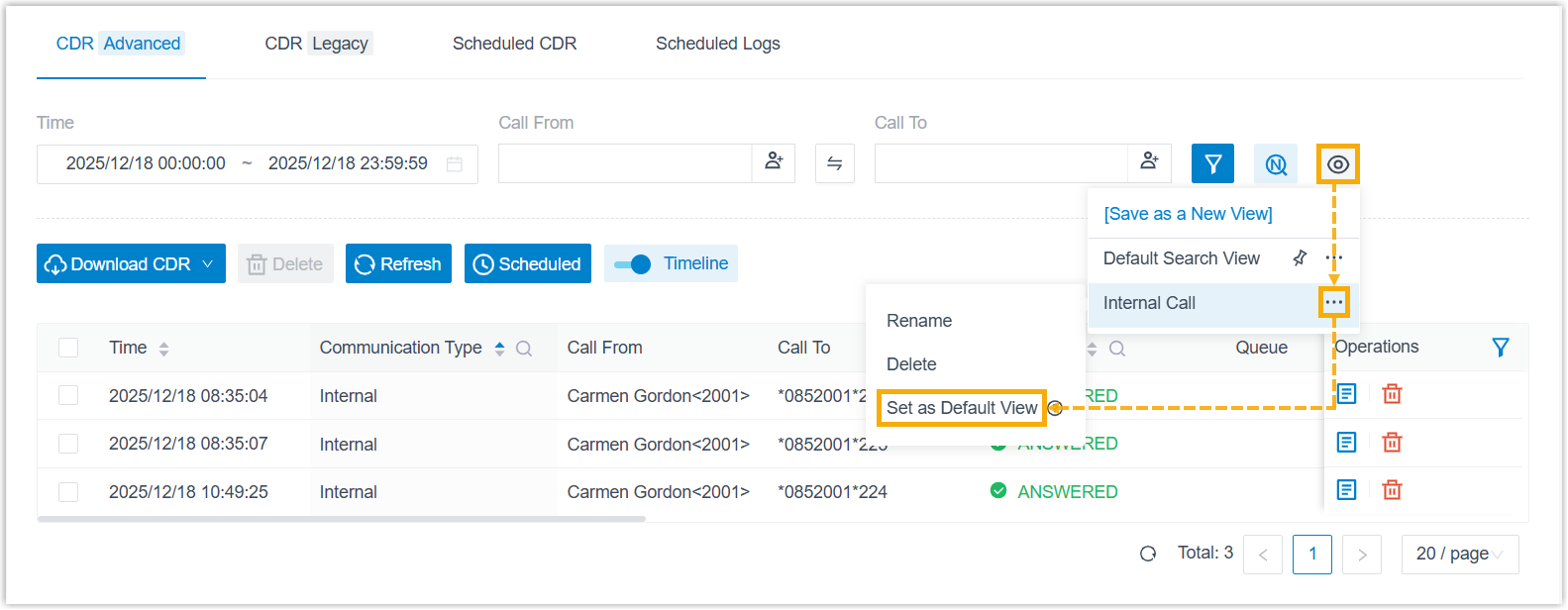

Mark a view as the default to have it applied automatically when you open the report.

Result

The list shows every CDR that matches your filters. Click the details icon on any row to open its full record.
